13 lb/in Material: Steel 105 in Material: Structural A36 Steel (E=29E06 PSI, v=0.32) 1/2" 5" 1" 3" On plain white paper

Post by answerhappygod »

13 Lb In Material Steel 105 In Material Structural A36 Steel E 29e06 Psi V 0 32 1 2 5 1 3 On Plain White Paper 1
13 Lb In Material Steel 105 In Material Structural A36 Steel E 29e06 Psi V 0 32 1 2 5 1 3 On Plain White Paper 1 (43.46 KiB) Viewed 56 times
13 Lb In Material Steel 105 In Material Structural A36 Steel E 29e06 Psi V 0 32 1 2 5 1 3 On Plain White Paper 2
13 Lb In Material Steel 105 In Material Structural A36 Steel E 29e06 Psi V 0 32 1 2 5 1 3 On Plain White Paper 2 (21.05 KiB) Viewed 56 times

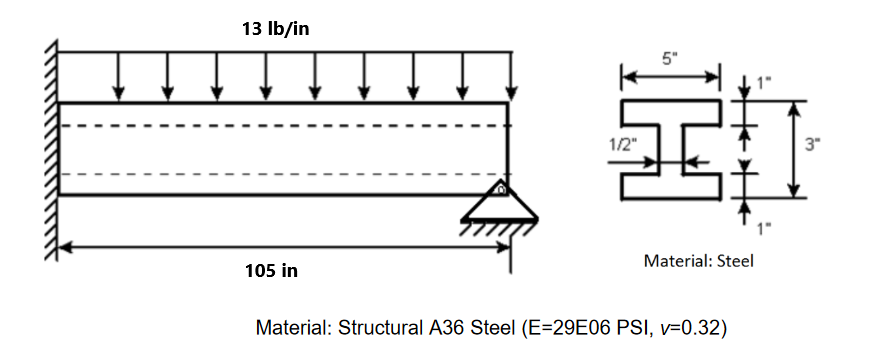

13 lb/in Material: Steel 105 in Material: Structural A36 Steel (E=29E06 PSI, v=0.32) 1/2" 5" 1" 3"

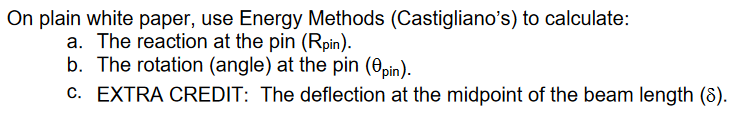

On plain white paper, use Energy Methods (Castigliano's) to calculate: a. The reaction at the pin (Rpin). b. The rotation (angle) at the pin (0pin). C. EXTRA CREDIT: The deflection at the midpoint of the beam length (8).
