1. Perform calculations in a computer program of choice (Excel, Matlab, Mathcad, etc.) to generate (a) a plot of the Z-s

[answerhappygod]

1 Perform Calculations In A Computer Program Of Choice Excel Matlab Mathcad Etc To Generate A A Plot Of The Z S 1 (66.79 KiB) Viewed 52 times

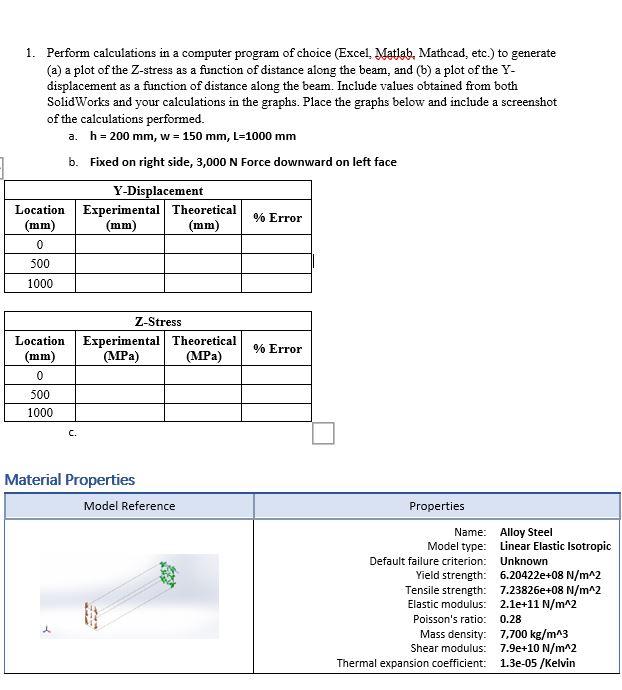

1. Perform calculations in a computer program of choice (Excel, Matlab, Mathcad, etc.) to generate (a) a plot of the Z-stress as a function of distance along the beam, and (b) a plot of the Y- displacement as a function of distance along the beam. Include values obtained from both SolidWorks and your calculations in the graphs. Place the graphs below and include a screenshot of the calculations performed. a. h = 200 mm, w = 150 mm, L=1000 mm b. Fixed on right side, 3,000 N Force downward on left face Location Y-Displacement Experimental Theoretical (mm) % Error (mm) (mm) 0 500 1000 Z-Stress Location. Experimental Theoretical (MPa) % Error (mm) (MPa) 0 500 1000 C. Material Properties Model Reference Properties Name: Alloy Steel Model type: Linear Elastic Isotropic Default failure criterion: Unknown Yield strength: 6.20422e+08 N/m^2 Tensile strength: 7.23826e+08 N/m^2 Elastic modulus: 2.1e+11 N/m^2 Poisson's ratio: 0.28 Mass density: 7,700 kg/m^3 Shear modulus: 7.9e+10 N/m^2 Thermal expansion coefficient: 1.3e-05/Kelvin
