Required information There is a steady isothermal flow of water at 20°C through the device in the figure given below. He

[answerhappygod]

Required Information There Is A Steady Isothermal Flow Of Water At 20 C Through The Device In The Figure Given Below He 1 (17.96 KiB) Viewed 43 times

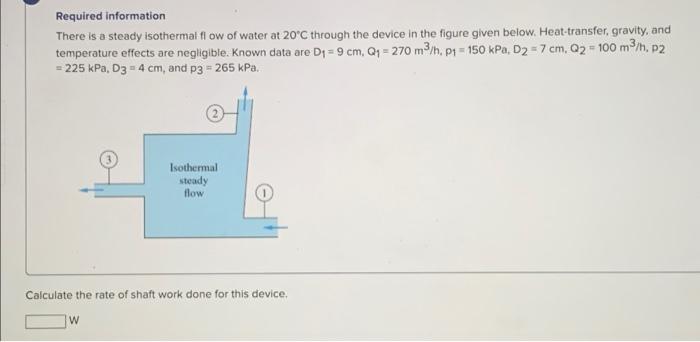

Required information There is a steady isothermal flow of water at 20°C through the device in the figure given below. Heat-transfer, gravity, and temperature effects are negligible. Known data are D₁-9 cm, Q₁ = 270 m3/h, p1=150 kPa, D2 = 7 cm, Q₂ = 100 m³/h, p2 = 225 kPa, D3 = 4 cm, and p3 = 265 kPa. Isothermal steady flow Calculate the rate of shaft work done for this device. W
