Required information A vane turns a water jet through an angle a, as shown in the figure.The support angle B=39°. Neglec

Post by answerhappygod »

Required Information A Vane Turns A Water Jet Through An Angle A As Shown In The Figure The Support Angle B 39 Neglec 1
Required Information A Vane Turns A Water Jet Through An Angle A As Shown In The Figure The Support Angle B 39 Neglec 1 (14.82 KiB) Viewed 45 times

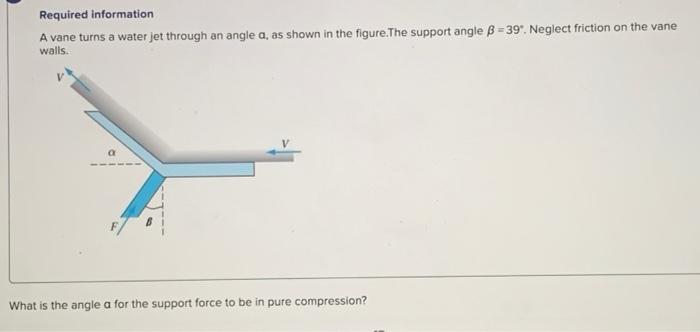

Required information A vane turns a water jet through an angle a, as shown in the figure.The support angle B=39°. Neglect friction on the vane walls. What is the angle a for the support force to be in pure compression?
