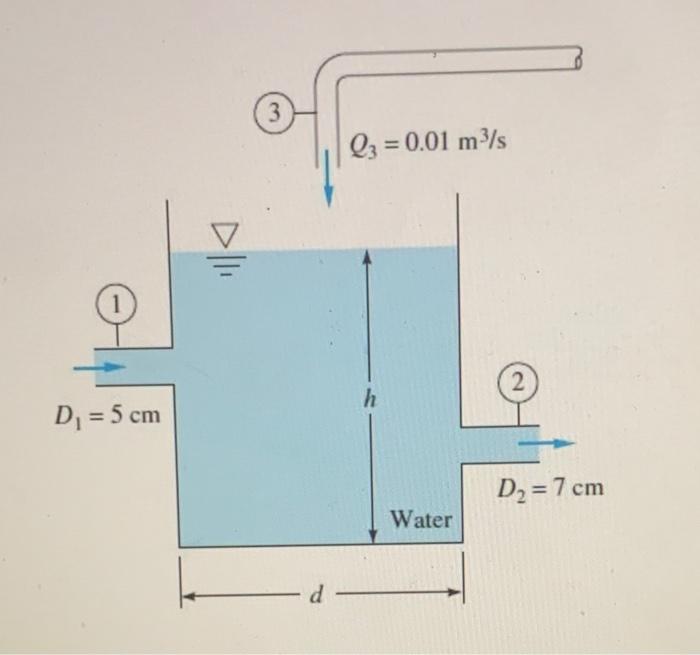

Required information The open tank in the figure given below contains water at 20°C and is being filled through section 1. Assume incompressible flow..
1 D₁ = 5 cm D||₁ 3 d Q3 = 0.01 m³/s h Water 2 D₂ = 7 cm

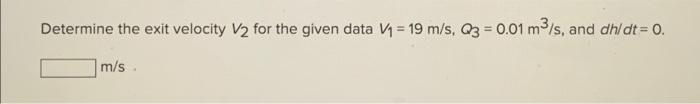

Determine the exit velocity V₂ for the given data V₁ = 19 m/s, Q3= 0.01 m³/s, and dh/dt = 0. m/s.
