The link lengths and the value of 02 and offset for some fourbar crank-slider linkages are defined in the table below. T

Post by answerhappygod »

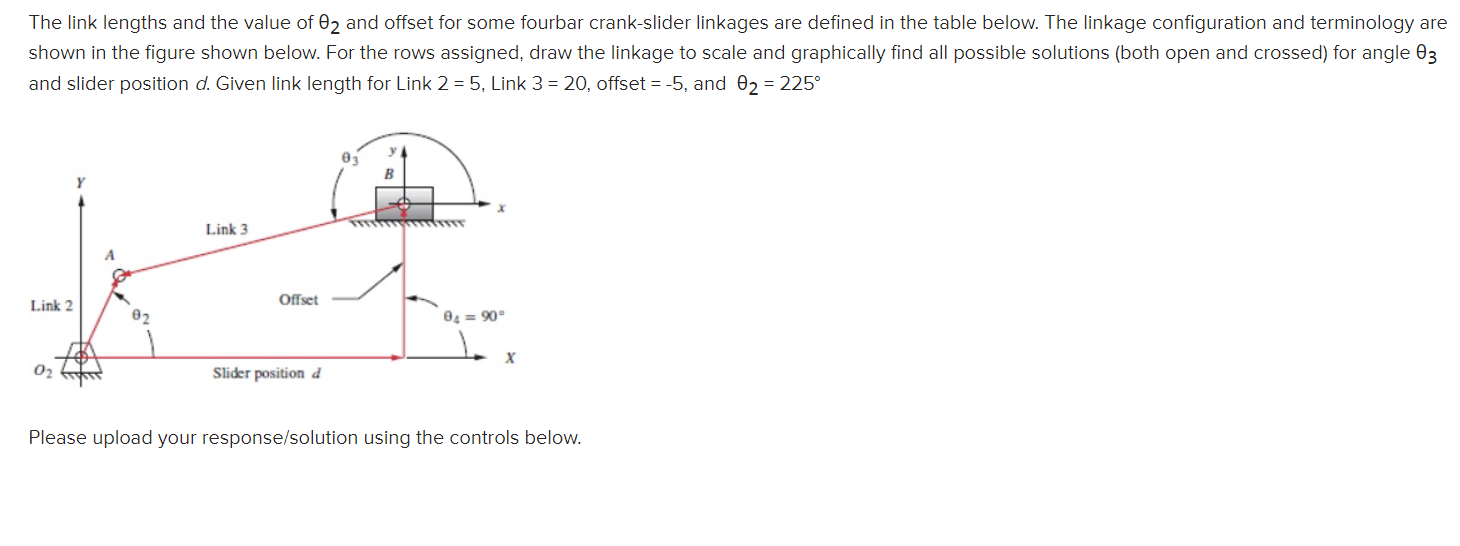

The Link Lengths And The Value Of 02 And Offset For Some Fourbar Crank Slider Linkages Are Defined In The Table Below T 1
The Link Lengths And The Value Of 02 And Offset For Some Fourbar Crank Slider Linkages Are Defined In The Table Below T 1 (103.39 KiB) Viewed 38 times
The link lengths and the value of 02 and offset for some fourbar crank-slider linkages are defined in the table below. The linkage configuration and terminology are shown in the figure shown below. For the rows assigned, draw the linkage to scale and graphically find all possible solutions (both open and crossed) for angle 83 and slider position d. Given link length for Link 2 = 5, Link 3= 20, offset=-5, and 02 = 225° 03 B Link 3 Offset Link 2 84 = 90° X 0₂ Slider position d Please upload your response/solution using the controls below.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
