When the weight of block B to maintain equilibrium is maximum, the tensile forces in the four segments of the cord are T

[answerhappygod]

When The Weight Of Block B To Maintain Equilibrium Is Maximum The Tensile Forces In The Four Segments Of The Cord Are T 1 (72.97 KiB) Viewed 59 times

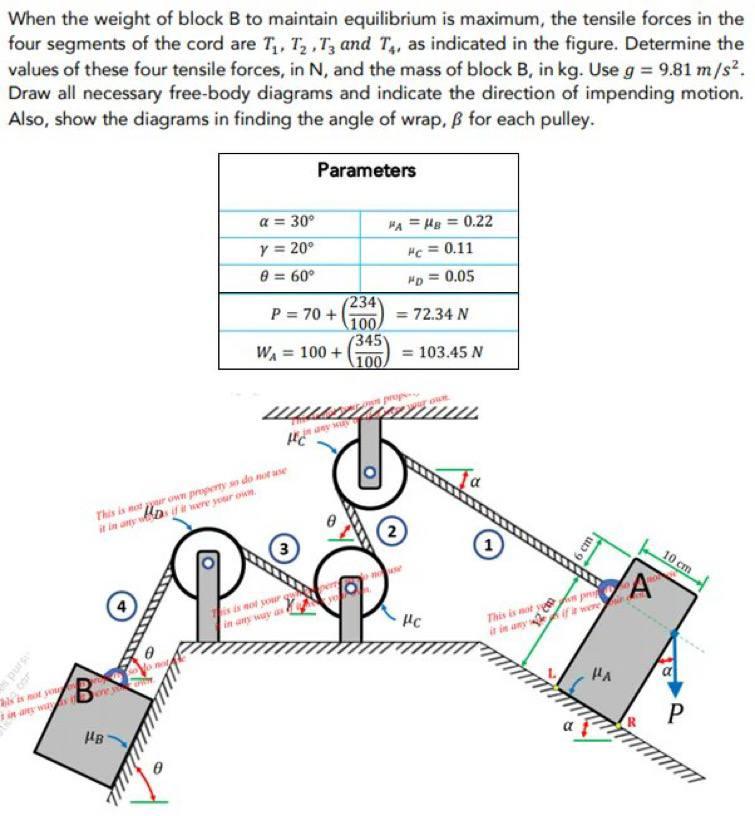

When the weight of block B to maintain equilibrium is maximum, the tensile forces in the four segments of the cord are T₁, T₂, T3 and T₁, as indicated in the figure. Determine the values of these four tensile forces, in N, and the mass of block B, in kg. Use g = 9.81 m/s². Draw all necessary free-body diagrams and indicate the direction of impending motion. Also, show the diagrams in finding the angle of wrap, ß for each pulley. Parameters a = 30° "A=Hg = 0.22 y = 20° "c= 0.11 8 = 60° "D= = 0.05 (234) P = 70 + = 72.34 N 100/ W₁ = 100 + (365) = 103.45 N 100. FC sand sa is not your B in any way This is not your own property so do not use it in any if it were your own. is is not your in any way HB in any way Hc 1 This is not 5 cm, HA A 10 cm P
