(15 pts) Experimentally obtained open loop Bode plots for a unity feedback system is shown below. Use the plots to answe

Post by answerhappygod »

15 Pts Experimentally Obtained Open Loop Bode Plots For A Unity Feedback System Is Shown Below Use The Plots To Answe 1
15 Pts Experimentally Obtained Open Loop Bode Plots For A Unity Feedback System Is Shown Below Use The Plots To Answe 1 (33.07 KiB) Viewed 45 times

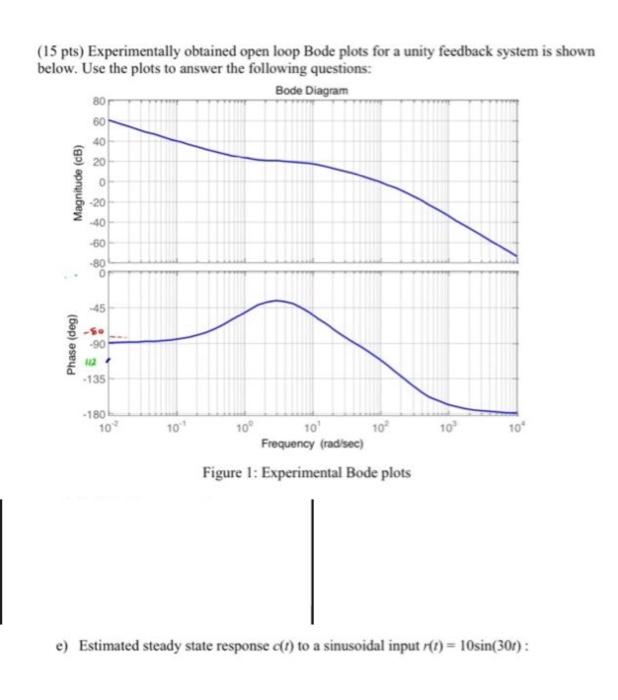

(15 pts) Experimentally obtained open loop Bode plots for a unity feedback system is shown below. Use the plots to answer the following questions: Bode Diagram 112 -135 -180 10° 10¹ Frequency (rad/sec) 10² 10° Figure 1: Experimental Bode plots e) Estimated steady state response c(t) to a sinusoidal input r(t) = 10sin(30r): Magnitude (CB) 08 8 8 8 8 88 Phase (deg) 80 60 40 20 0 -40 -60 8° -45 -50 -90 10¹
