A steady air flows into a device through hole 1 and leaving the device through hole 2 and hole 3 as shown in Figure 4.31
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A steady air flows into a device through hole 1 and leaving the device through hole 2 and hole 3 as shown in Figure 4.31

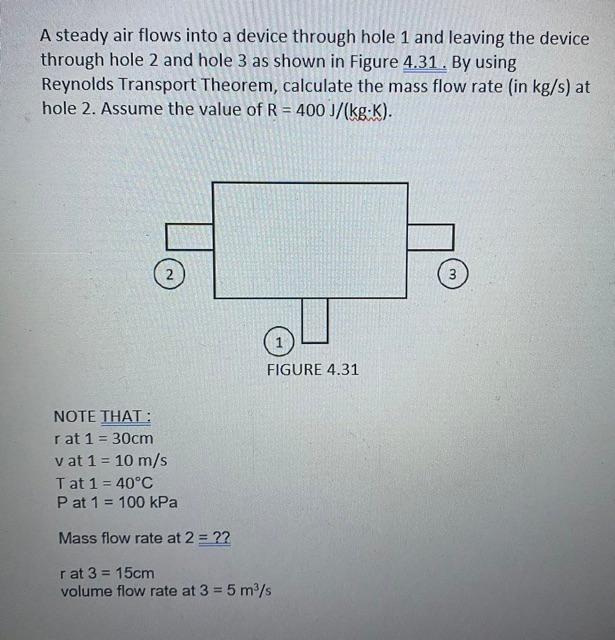

A steady air flows into a device through hole 1 and leaving the device through hole 2 and hole 3 as shown in Figure 4.31. By using Reynolds Transport Theorem, calculate the mass flow rate (in kg/s) at hole 2. Assume the value of R = 400 J/(kg:K). FIGURE 4.31 NOTE THAT: rat 1 = 30cm v at 1 = 10 m/s T at 1 = 40°C P at 1 = 100 kPa Mass flow rate at 2 = ?? rat 3 = 15cm volume flow rate at 3 = 5 m³/s
