Partial Credit Problem 1 (35 pts): Rod CD is attached to cable CB and cable CE as shown below. A downward force P is app

[answerhappygod]

Partial Credit Problem 1 35 Pts Rod Cd Is Attached To Cable Cb And Cable Ce As Shown Below A Downward Force P Is App 1 (29.69 KiB) Viewed 42 times

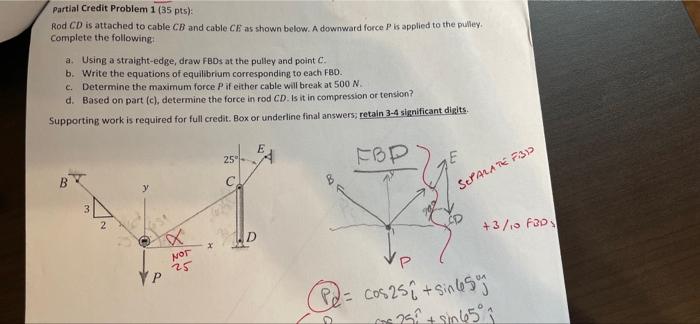

Partial Credit Problem 1 (35 pts): Rod CD is attached to cable CB and cable CE as shown below. A downward force P is applied to the pulley. Complete the following: a. Using a straight-edge, draw FBDs at the pulley and point C. b. Write the equations of equilibrium corresponding to each FBD. c. Determine the maximum force P if either cable will break at 500 N. d. Based on part (c), determine the force in rod CD. Is it in compression or tension? Supporting work is required for full credit. Box or underline final answers; retain 3-4 significant digits. E 25%- FBP 2 = cos 25₁ +sines 6525² + sin 651 Nor 25 X SEPALATE F312 +3/10 F30
