Example 12.1: For the flow control system of Fig. 12.7 prepare a signal flow graph. Identify suitable state variables an

[answerhappygod]

Example 12 1 For The Flow Control System Of Fig 12 7 Prepare A Signal Flow Graph Identify Suitable State Variables An 1 (61.11 KiB) Viewed 52 times

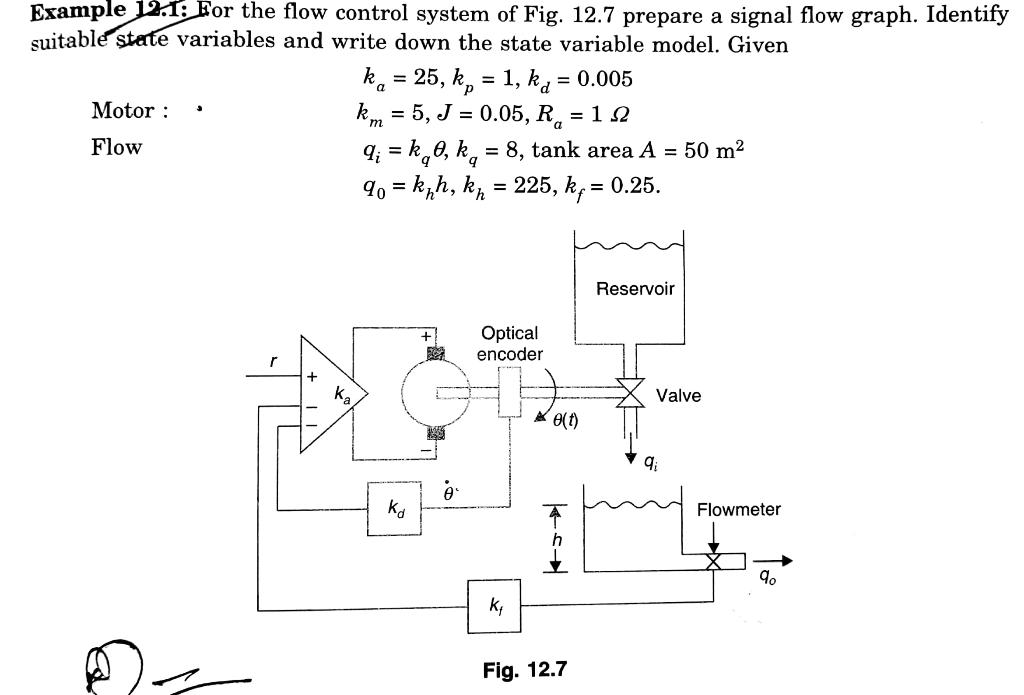

Example 12.1: For the flow control system of Fig. 12.7 prepare a signal flow graph. Identify suitable state variables and write down the state variable model. Given ka = 25, kp = 1, ka = 0.005 Motor: km = 5, J = 0.05, R = 1 2 Flow 9₁ = k0, kg = 8, tank area A = 50 m² 9₁ = k₂h, k, = 225, k, = 0.25. Reservoir Optical encoder ka Kd e(t) PS4 K₁ Fig. 12.7 Valve qi Flowmeter %
