Question 27 [25 marks] 200 mm 15° 240 mm 4 80 mm 60° 000 CO A three-bar linkage is shown in the figure above. At an inst

Post by answerhappygod »

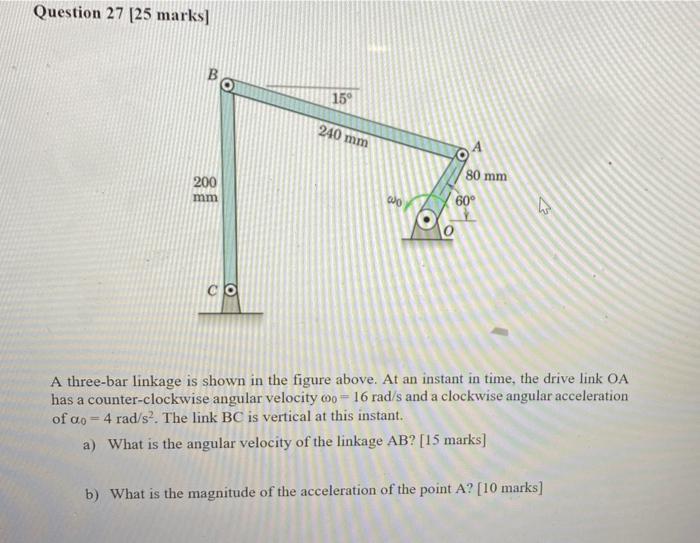

Question 27 25 Marks 200 Mm 15 240 Mm 4 80 Mm 60 000 Co A Three Bar Linkage Is Shown In The Figure Above At An Inst 1
Question 27 25 Marks 200 Mm 15 240 Mm 4 80 Mm 60 000 Co A Three Bar Linkage Is Shown In The Figure Above At An Inst 1 (52.51 KiB) Viewed 33 times
Question 27 [25 marks] 200 mm 15° 240 mm 4 80 mm 60° 000 CO A three-bar linkage is shown in the figure above. At an instant in time, the drive link OA has a counter-clockwise angular velocity (0-16 rad/s and a clockwise angular acceleration of ao 4 rad/s². The link BC is vertical at this instant. a) What is the angular velocity of the linkage AB? [15 marks] b) What is the magnitude of the acceleration of the point A? [10 marks]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
