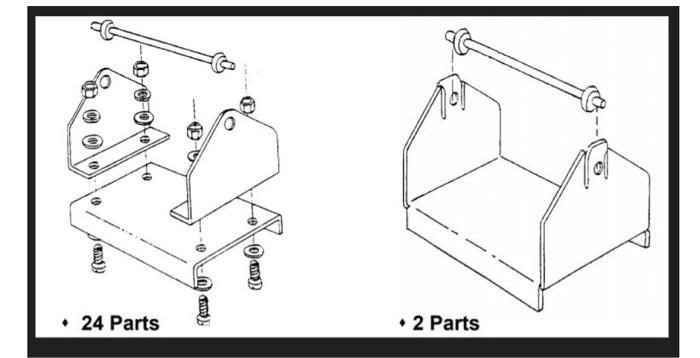

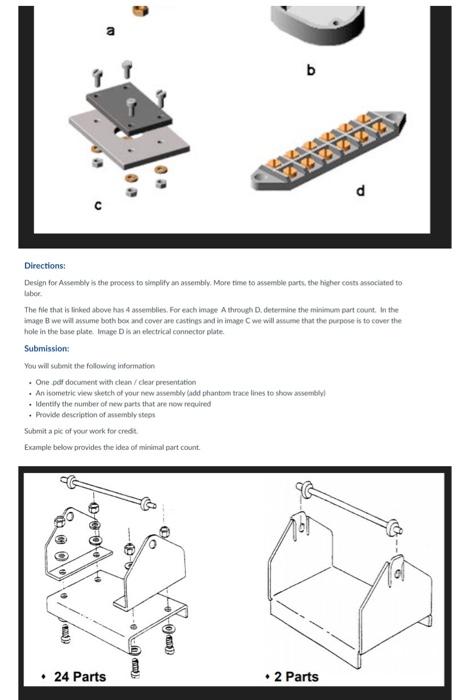

a U d Directions: Design for Assembly is the process to simplify an assembly. More time to assemble parts, the higher costs associated to labor The file that is linked above has 4 assemblies. For each image A through D. determine the minimum part count. In the image 8 we will assume both box and cover are castings and in image C we will assume that the purpose is to cover the hole in the base plate. Image D is an electrical connector plate. Submission: You will submit the following information . One pdf document with clean/clear presentation An isometric view sketch of your new assembly (add phantom trace lines to show assembly) . Identify the number of new parts that are now required • Provide description of assembly steps Submit a pic of your work for credit Example below provides the idea of minimal part count. ·D/00 2000, HO 30 • 24 Parts D -0 ()) f0cm), b (0) • 2 Parts F
