For the beam and loading shown below, determine the beam deflection at point H. Assume that El = 6.0 × 104 kN-m² is cons

Post by answerhappygod »

For The Beam And Loading Shown Below Determine The Beam Deflection At Point H Assume That El 6 0 104 Kn M Is Cons 1
For The Beam And Loading Shown Below Determine The Beam Deflection At Point H Assume That El 6 0 104 Kn M Is Cons 1 (252.87 KiB) Viewed 34 times

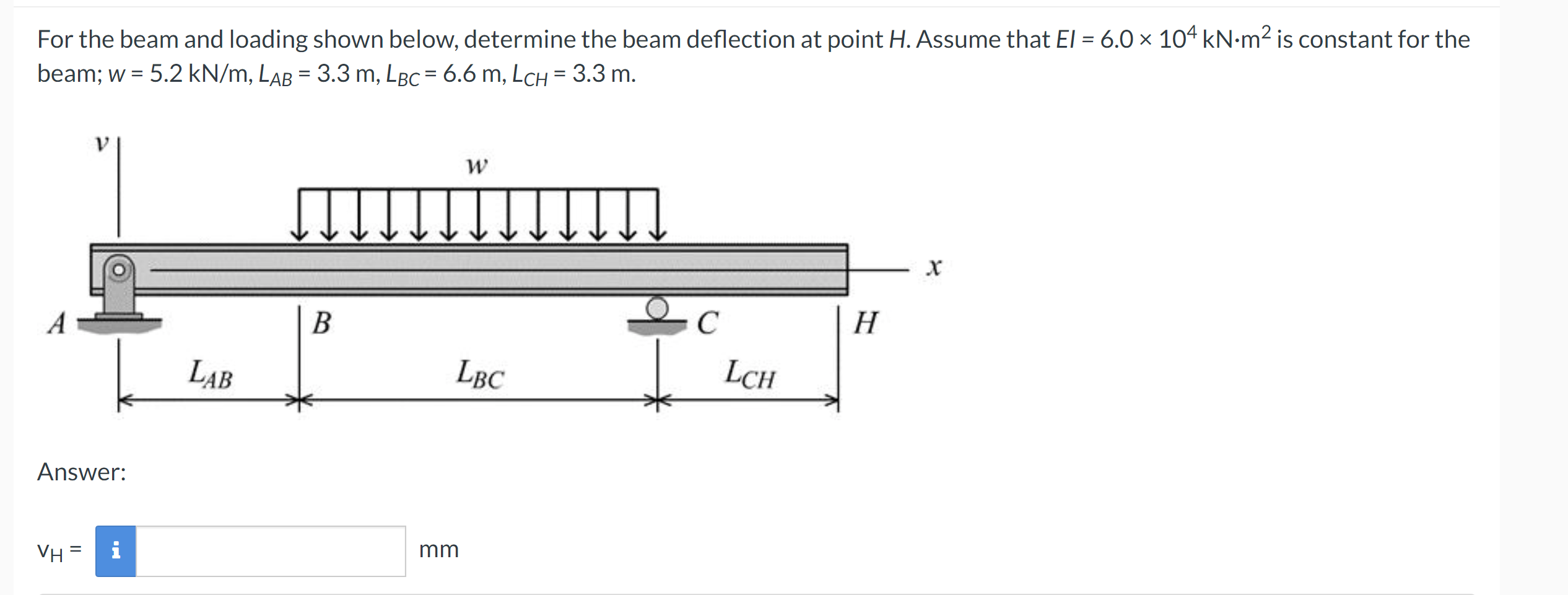

For the beam and loading shown below, determine the beam deflection at point H. Assume that El = 6.0 × 104 kN-m² is constant for the beam; w = 5.2 kN/m, LAB = 3.3 m, LBC = 6.6 m, LCH = 3.3 m. V W X B -C с LBC A Answer: VH = i LAB * mm LCH H
