- A Thin Triangular Plate Pqr Forms A Right Angle At Point Q During Deformation Point Q Moves To The Left By U 1 9 Mm An 1 (29.36 KiB) Viewed 48 times
A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u-1.9 mm an
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u-1.9 mm an

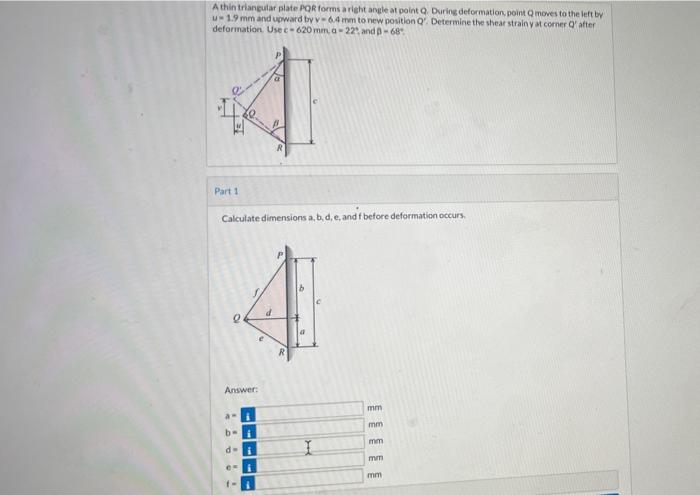

A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u-1.9 mm and upward by v-6.4 mm to new position Q. Determine the shear strain y at corner Q' after deformation. Use c-620 mm, a-22, and 0-68 Part 1 Calculate dimensions a, b, d, e, and f before deformation occurs. 4 Answer: bi di I en i f- mm mm mm mm mm
