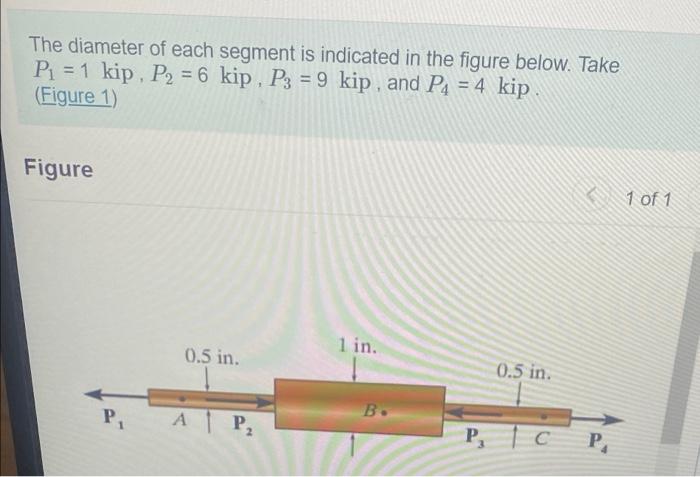

The diameter of each segment is indicated in the figure below. Take P₁=1 kip, P₂ = 6 kip, P3 = 9 kip, and P4 = 4 kip (Figure 1) Figure 1 of 1 1 in. 0.5 in. P₁ A P₂ B. 0.5 in. P, C | P₁

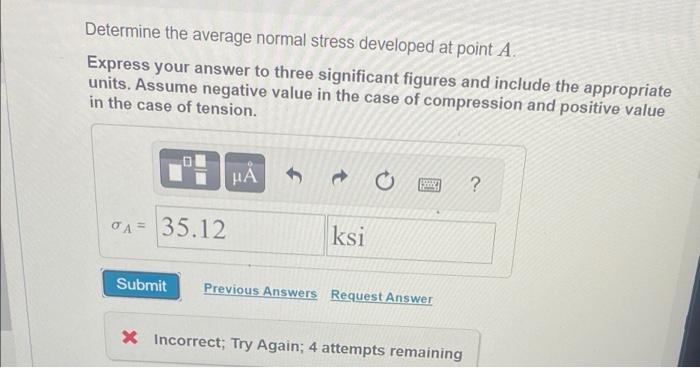

Determine the average normal stress developed at point A. Express your answer to three significant figures and include the appropriate units. Assume negative value in the case of compression and positive value in the case of tension. HA P ? A= 35.12 ksi Submit Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining
