The rigid bar ABC pivots about support B. After application of load P, end C of the rigid bar moves upward by 0.07 in. I

Post by answerhappygod »

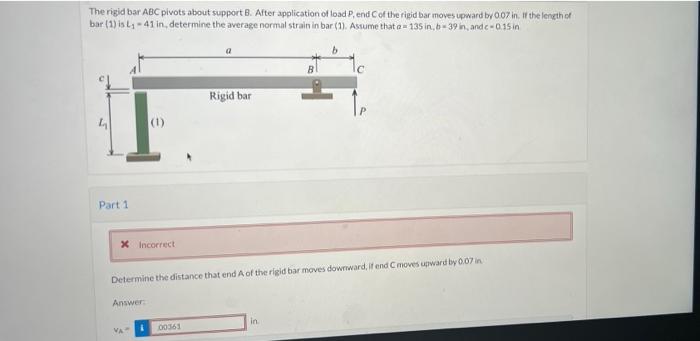

The Rigid Bar Abc Pivots About Support B After Application Of Load P End C Of The Rigid Bar Moves Upward By 0 07 In I 1
The Rigid Bar Abc Pivots About Support B After Application Of Load P End C Of The Rigid Bar Moves Upward By 0 07 In I 1 (19.96 KiB) Viewed 26 times
The rigid bar ABC pivots about support B. After application of load P, end C of the rigid bar moves upward by 0.07 in. If the length of bar (1) is L₁-41 in, determine the average normal strain in bar (1). Assume that a-135 in, b-39 in, and c-0.15 in a b C Rigid bar 4 Part 1 * Incorrect Determine the distance that end A of the rigid bar moves downward, if end C moves upward by 0.07 in Answer: in VA i 00361
