The cantilever beam shown in the figure consists of a rectangular structural steel tube shape [E = 200 GPa;/= 95 x 106 m

Post by answerhappygod »

The Cantilever Beam Shown In The Figure Consists Of A Rectangular Structural Steel Tube Shape E 200 Gpa 95 X 106 M 1
The Cantilever Beam Shown In The Figure Consists Of A Rectangular Structural Steel Tube Shape E 200 Gpa 95 X 106 M 1 (22.87 KiB) Viewed 36 times

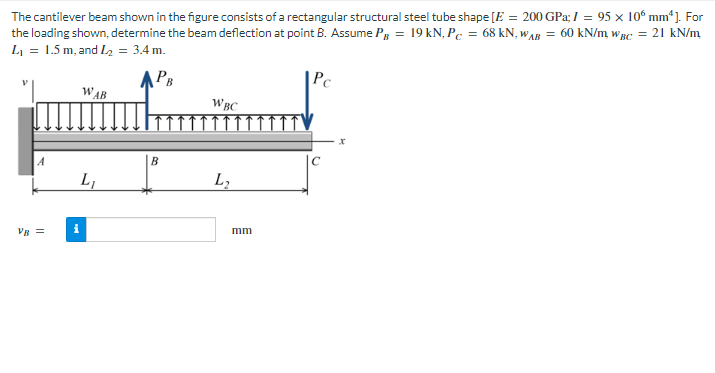

The cantilever beam shown in the figure consists of a rectangular structural steel tube shape [E = 200 GPa;/= 95 x 106 mm4]. For the loading shown, determine the beam deflection at point B. Assume PB = 19 kN, Pc = 68 kN, WAB= 60 kN/m, WBC = 21 kN/m L₁ = 1.5 m, and L₂ = 3.4 m. PB Pc WAB WBC L₁ L₂ A VB = B mn
