The cantilever beam consists of a rectangular structural steel tube shape [E-25000 ksi;/- 455 in.4]. For the loading sho

Post by answerhappygod »

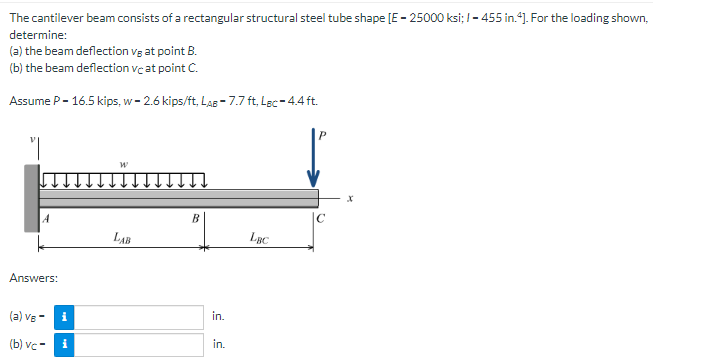

The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 25000 Ksi 455 In 4 For The Loading Sho 1
The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 25000 Ksi 455 In 4 For The Loading Sho 1 (14.75 KiB) Viewed 35 times
The cantilever beam consists of a rectangular structural steel tube shape [E-25000 ksi;/- 455 in.4]. For the loading shown, determine: (a) the beam deflection vg at point B. (b) the beam deflection vc at point C. Assume P-16.5 kips, w-2.6 kips/ft, LAB-7.7 ft, Lac-4.4 ft. W B LAB LBC Answers: (a) VB- (b) vc- i i in. in.
