pin The solid 23-mm-diameter steel [E-200 GPa) shaft supports two belt pulleys. Assume that the bearing at A can be idea

Post by answerhappygod »

Pin The Solid 23 Mm Diameter Steel E 200 Gpa Shaft Supports Two Belt Pulleys Assume That The Bearing At A Can Be Idea 1
Pin The Solid 23 Mm Diameter Steel E 200 Gpa Shaft Supports Two Belt Pulleys Assume That The Bearing At A Can Be Idea 1 (26.93 KiB) Viewed 52 times

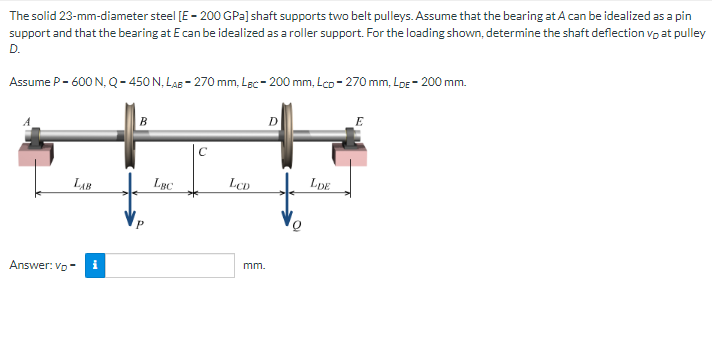

pin The solid 23-mm-diameter steel [E-200 GPa) shaft supports two belt pulleys. Assume that the bearing at A can be idealized as a support and that the bearing at E can be idealized as a roller support. For the loading shown, determine the shaft deflection vp at pulley D. Assume P-600 N, Q-450 N, LA6-270 mm, Lac - 200 mm, Lcp-270 mm, LDE-200 mm. B E LAB LCD LDE Answer: Vp i P LBC mm.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
