The two forces act on the simply supported beam as shown. Determine the maximum moment in the x-z plane in units of N-m,

Post by answerhappygod »

The Two Forces Act On The Simply Supported Beam As Shown Determine The Maximum Moment In The X Z Plane In Units Of N M 1
The Two Forces Act On The Simply Supported Beam As Shown Determine The Maximum Moment In The X Z Plane In Units Of N M 1 (36.88 KiB) Viewed 54 times

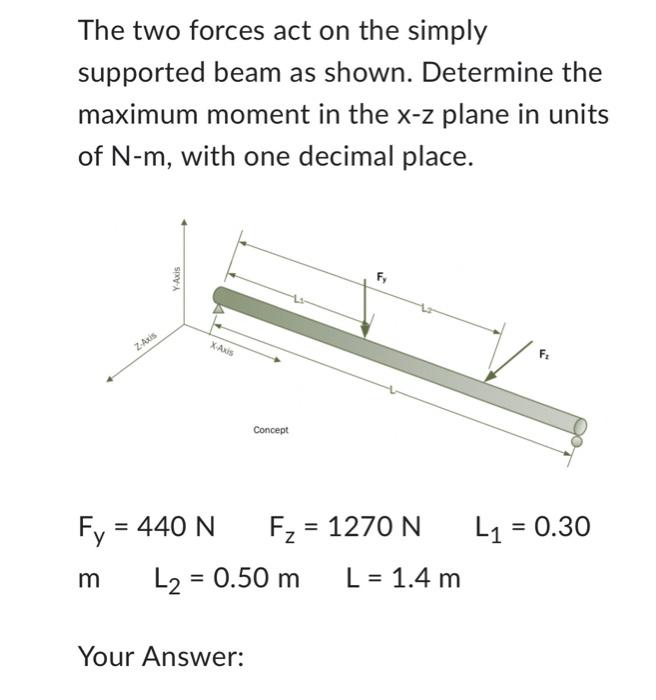

The two forces act on the simply supported beam as shown. Determine the maximum moment in the x-z plane in units of N-m, with one decimal place. Fy F₂ L₁ = 0.30 Z-Axis Y-Axis X-Axis Concept F₂ = 1270 N L₂ = 0.50 m L = 1.4 m Fy = 440 N m Your Answer:
