The assembly consists of an A-36 steel bolt and a C83400 red brass tube. Figure 1 of 1 JUJU Part A If the nut is drawn u

Post by answerhappygod »

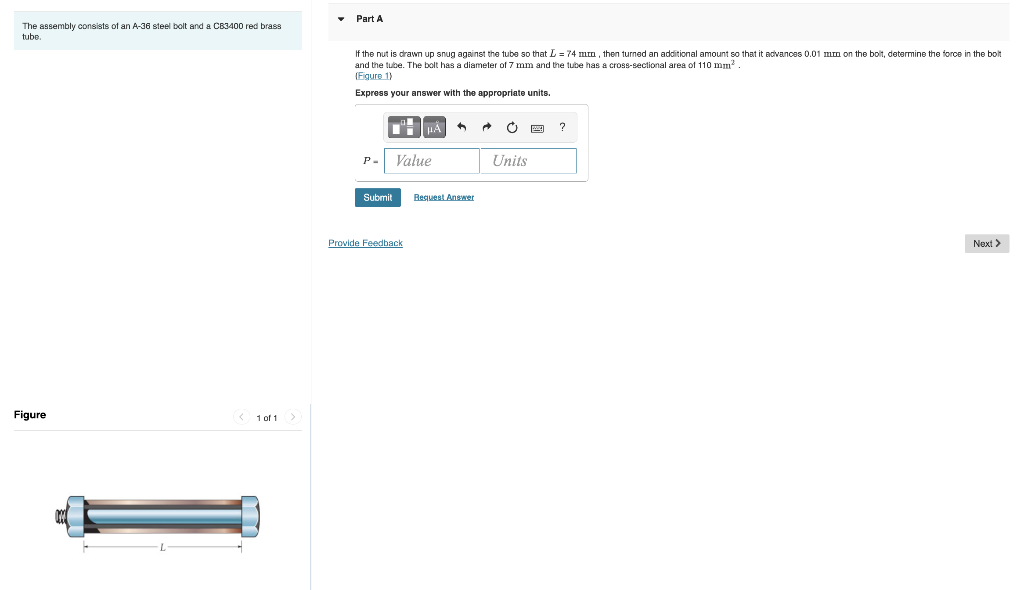

The Assembly Consists Of An A 36 Steel Bolt And A C83400 Red Brass Tube Figure 1 Of 1 Juju Part A If The Nut Is Drawn U 1
The Assembly Consists Of An A 36 Steel Bolt And A C83400 Red Brass Tube Figure 1 Of 1 Juju Part A If The Nut Is Drawn U 1 (45.97 KiB) Viewed 28 times
The assembly consists of an A-36 steel bolt and a C83400 red brass tube. Figure 1 of 1 JUJU Part A If the nut is drawn up snug against the tube so that I = 74 mm, then turned an additional amount so that it advances 0.01 mm on the bolt, determine the force in the bolt and the tube. The bolt has a diameter of 7 mm and the tube has a cross-sectional area of 110 mm². (Figure 1) Express your answer with the appropriate units. ^ Ò ? P. Value Units Submit Provide Feedback Next > Request Answer
