The steel bolt has a diameter of 6 mm and fits through an aluminum sleeve as shown. The sleeve has an inner diameter of

[answerhappygod]

The Steel Bolt Has A Diameter Of 6 Mm And Fits Through An Aluminum Sleeve As Shown The Sleeve Has An Inner Diameter Of 1 (49.21 KiB) Viewed 45 times

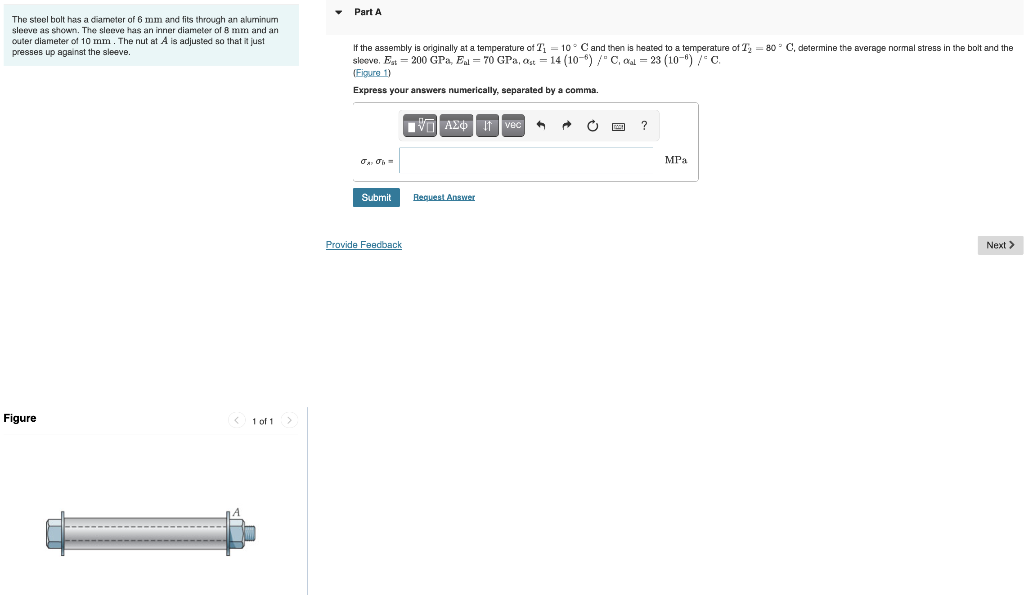

The steel bolt has a diameter of 6 mm and fits through an aluminum sleeve as shown. The sleeve has an inner diameter of 8 mm and an outer diameter of 10 mm. The nut at A is adjusted so that it just presses up against the sleeve. Figure < 1 of 1> ▾ Part A If the assembly is originally at a temperature of T₁ = 10° C and then is heated to a temperature of T₂ = 80° C, determine the average normal stress in the bolt and the sleeve. Est = 200 GPa, Eal = 70 GPa, ost = 14 (10-) /° C, Oal = 23 (10-) / C. (Figure 1) Express your answers numerically, separated by a comma. IVD ΑΣΦ | I c ? Request Answer Next > Submit Provide Feedback MPa
