For the pipe-flow-reducing section as shown in the figure D₁ = 6.60 cm, D2=5 cm, and p2=1 atm. All fluids are at 20°C. I

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the pipe-flow-reducing section as shown in the figure D₁ = 6.60 cm, D2=5 cm, and p2=1 atm. All fluids are at 20°C. I

Post by answerhappygod »

For The Pipe Flow Reducing Section As Shown In The Figure D 6 60 Cm D2 5 Cm And P2 1 Atm All Fluids Are At 20 C I 1
For The Pipe Flow Reducing Section As Shown In The Figure D 6 60 Cm D2 5 Cm And P2 1 Atm All Fluids Are At 20 C I 1 (12.91 KiB) Viewed 42 times

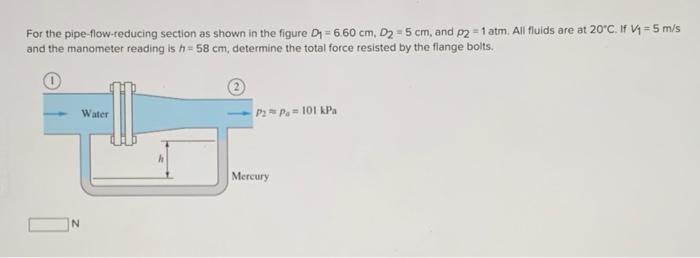

For the pipe-flow-reducing section as shown in the figure D₁ = 6.60 cm, D2=5 cm, and p2=1 atm. All fluids are at 20°C. If V₁ = 5 m/s and the manometer reading is h= 58 cm, determine the total force resisted by the flange bolts. Water P₂ Pa = 101 kPa N Mercury
