01 L The aluminum beam column shown is of length L=8 m and has a modulus of elasticity E=69 GPa and yield stress oy=55 N

[answerhappygod]

01 L The Aluminum Beam Column Shown Is Of Length L 8 M And Has A Modulus Of Elasticity E 69 Gpa And Yield Stress Oy 55 N 1 (38.26 KiB) Viewed 31 times

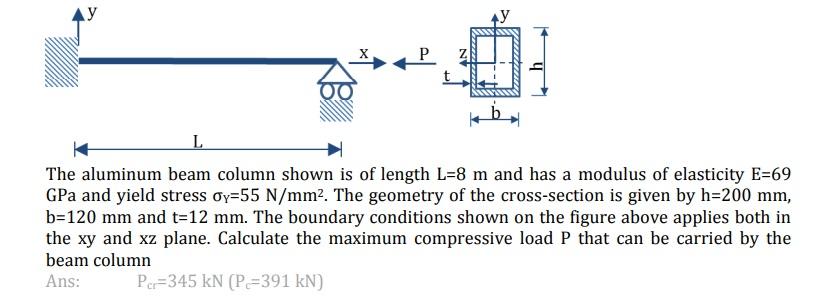

01 L The aluminum beam column shown is of length L=8 m and has a modulus of elasticity E=69 GPa and yield stress oy=55 N/mm². The geometry of the cross-section is given by h=200 mm, b=120 mm and t=12 mm. The boundary conditions shown on the figure above applies both in the xy and xz plane. Calculate the maximum compressive load P that can be carried by the beam column Ans: Pa 345 kN (P=391 kN) N
