Tallow The allowable shear stress for the material is 6 ksi. Pin A is subjected to double shear, whereas pin B is subjec

[answerhappygod]

Tallow The Allowable Shear Stress For The Material Is 6 Ksi Pin A Is Subjected To Double Shear Whereas Pin B Is Subjec 1 (50.18 KiB) Viewed 47 times

Tallow The Allowable Shear Stress For The Material Is 6 Ksi Pin A Is Subjected To Double Shear Whereas Pin B Is Subjec 2 (31.47 KiB) Viewed 47 times

Tallow The Allowable Shear Stress For The Material Is 6 Ksi Pin A Is Subjected To Double Shear Whereas Pin B Is Subjec 3 (33.99 KiB) Viewed 47 times

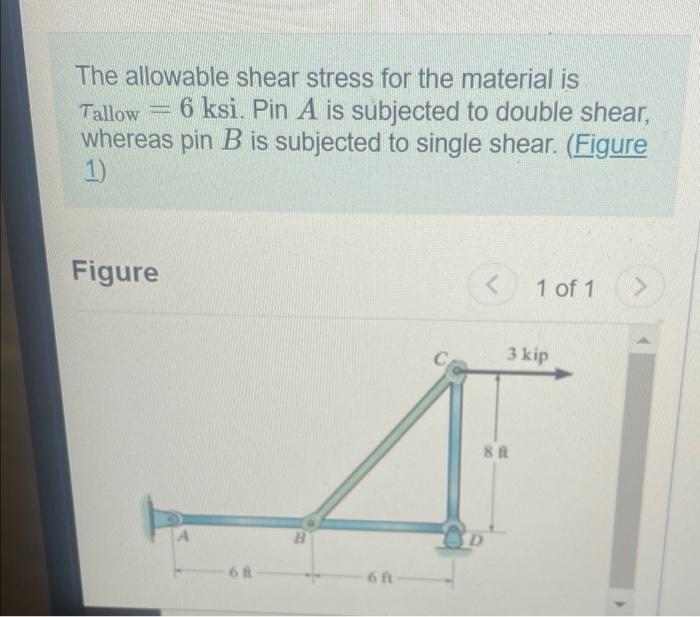

Tallow The allowable shear stress for the material is 6 ksi. Pin A is subjected to double shear, whereas pin B is subjected to single shear. (Figure 1) Figure < 1 of 1 > 3 kip -6 R 6 ft 8 A D

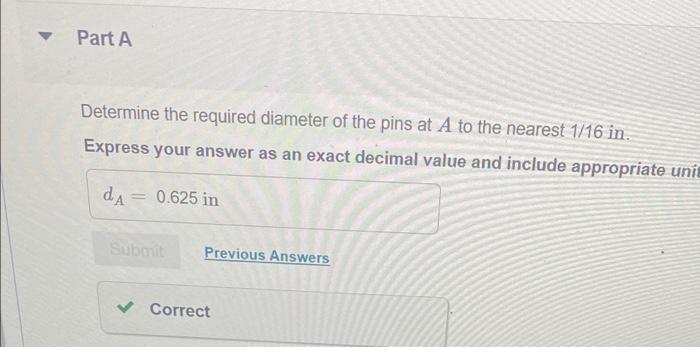

▾ Part A Determine the required diameter of the pins at A to the nearest 1/16 in. Express your answer as an exact decimal value and include appropriate uni dA = 0.625 in Submit Previous Answers Correct

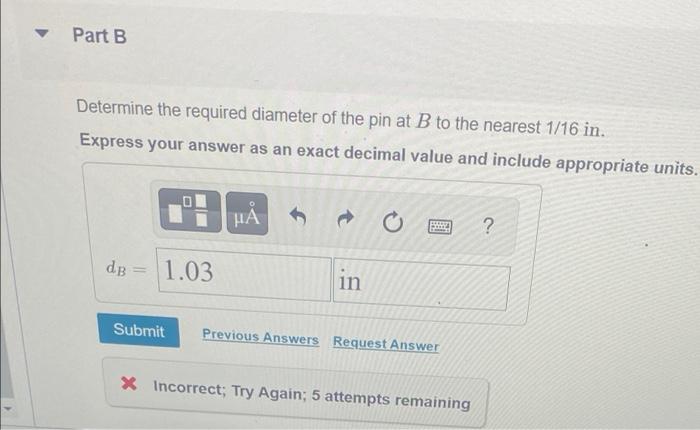

▾ Part B Determine the required diameter of the pin at B to the nearest 1/16 in. Express your answer as an exact decimal value and include appropriate units. O HÅ PO ? dB 1.03 in Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining
