Current Attempt in Progress The simply supported beam consists of a W10 x 30 structural steel wide-flange shape [E = 29,

Post by answerhappygod »

Current Attempt In Progress The Simply Supported Beam Consists Of A W10 X 30 Structural Steel Wide Flange Shape E 29 1
Current Attempt In Progress The Simply Supported Beam Consists Of A W10 X 30 Structural Steel Wide Flange Shape E 29 1 (65.28 KiB) Viewed 33 times

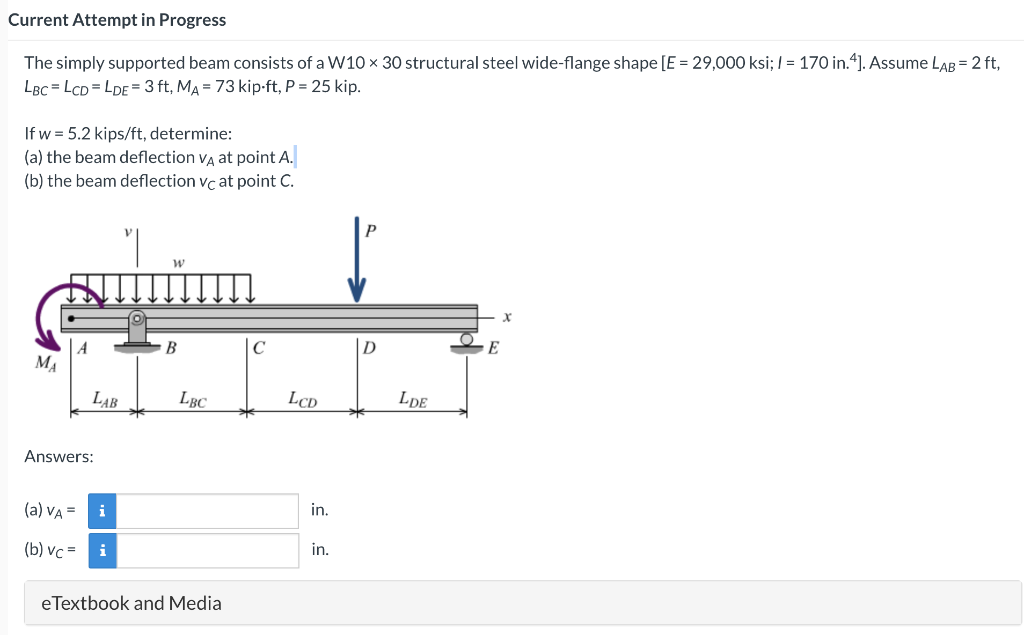

Current Attempt in Progress The simply supported beam consists of a W10 x 30 structural steel wide-flange shape [E = 29,000 ksi; / = 170 in.4]. Assume LAB = 2 ft, LBC LCD=LDE = 3 ft, MA = 73 kip-ft, P = 25 kip. If w = 5.2 kips/ft, determine: (a) the beam deflection VA at point A. (b) the beam deflection vc at point C. W x A C MA Answers: (a) VA = (b) vc= B LAB LBC i i eTextbook and Media LCD in. in. LDE
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
