= The cantilever beam shown in the figure consists of a rectangular structural steel tube shape [E = 200 GPa; I = 95 × 1

Post by answerhappygod »

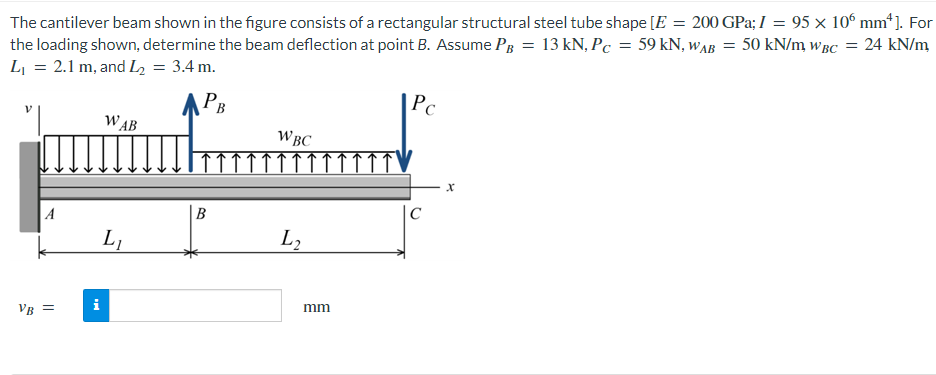

The Cantilever Beam Shown In The Figure Consists Of A Rectangular Structural Steel Tube Shape E 200 Gpa I 95 1 1
The Cantilever Beam Shown In The Figure Consists Of A Rectangular Structural Steel Tube Shape E 200 Gpa I 95 1 1 (31.87 KiB) Viewed 37 times
= The cantilever beam shown in the figure consists of a rectangular structural steel tube shape [E = 200 GPa; I = 95 × 106 mm*]. For 13 kN, Pc = 59 kN, WAB = 50 kN/m, WBC = 24 kN/m the loading shown, determine the beam deflection at point B. Assume PB L₁ = 2.1 m, and L₂ = 3.4 m. Pc PB WAB WBC B A L₂ L₁ VB = mm C X
