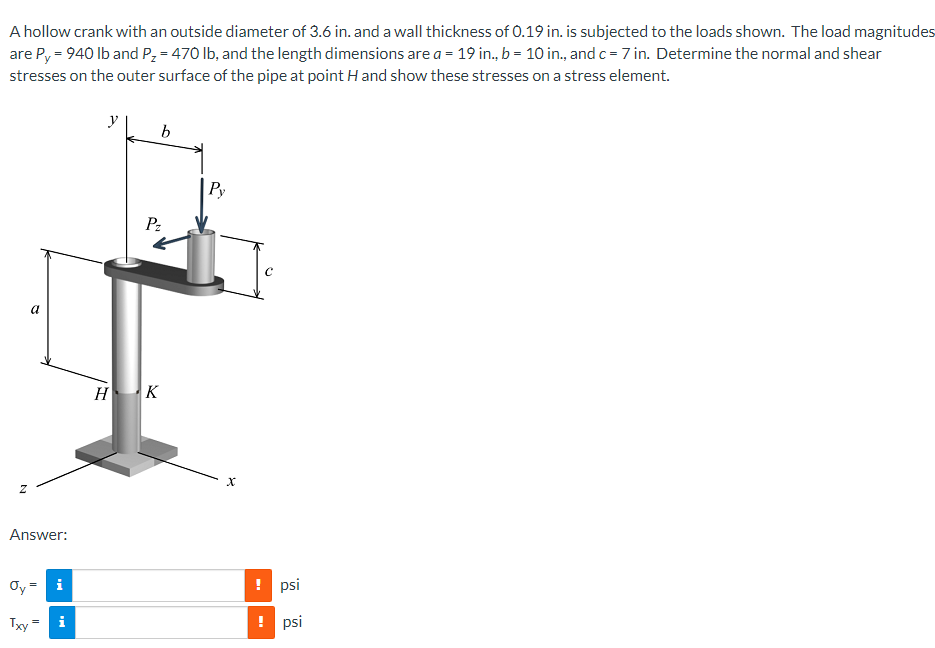

A hollow crank with an outside diameter of 3.6 in. and a wall thickness of 0.19 in. is subjected to the loads shown. The load magnitudes are Py = 940 lb and P₂ = 470 lb, and the length dimensions are a = 19 in., b= 10 in., and c = 7 in. Determine the normal and shear stresses on the outer surface of the pipe at point H and show these stresses on a stress element. y b C N a Answer: Oy = i Txy i Pz H K X ! psi ! psi
