A force of P₂ = 670 N is exerted on control arm BC, which is securely attached to the solid 21 mm diameter shaft. Dimens

Post by answerhappygod »

A Force Of P 670 N Is Exerted On Control Arm Bc Which Is Securely Attached To The Solid 21 Mm Diameter Shaft Dimens 1
A Force Of P 670 N Is Exerted On Control Arm Bc Which Is Securely Attached To The Solid 21 Mm Diameter Shaft Dimens 1 (192.64 KiB) Viewed 34 times

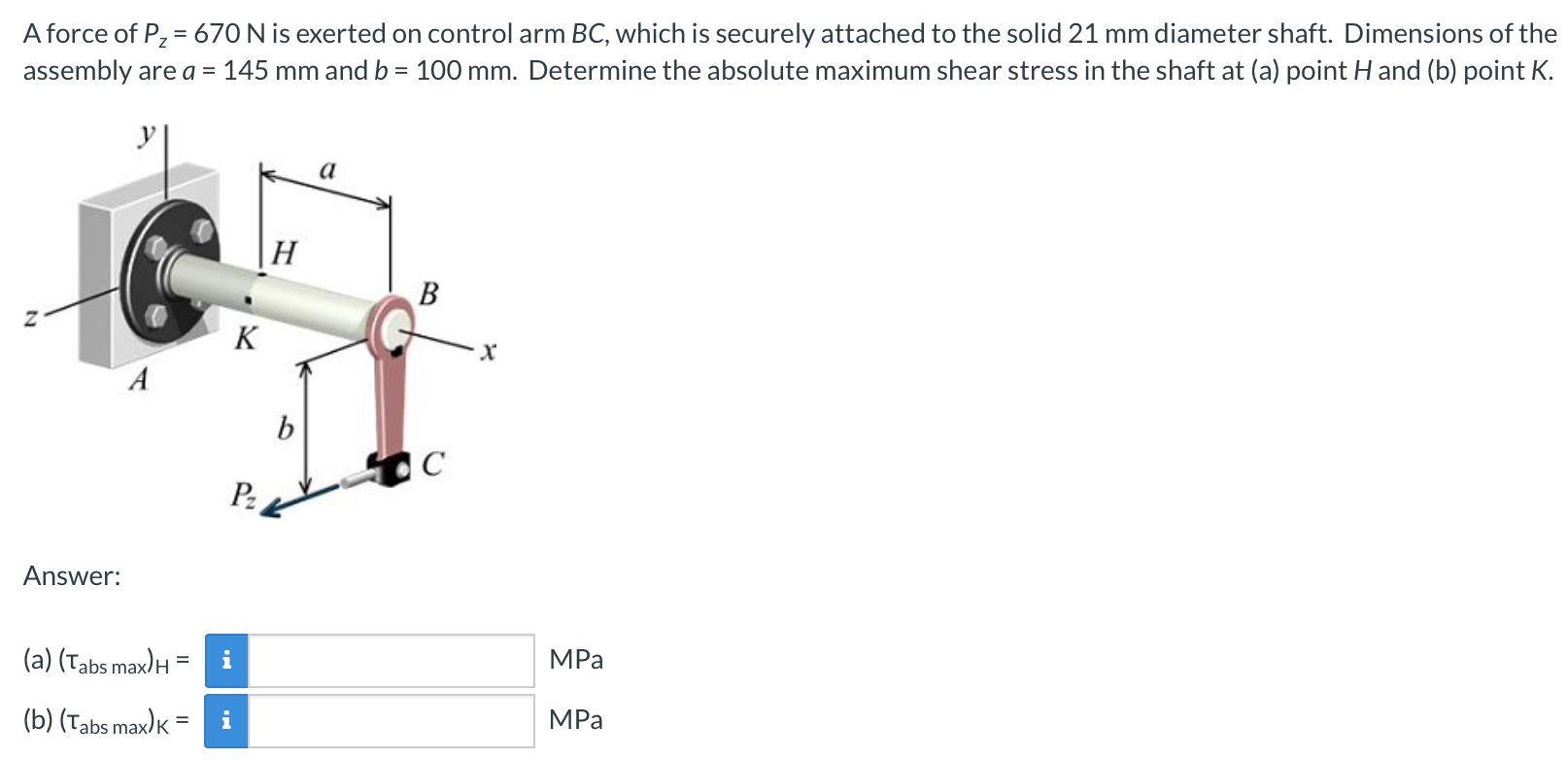

A force of P₂ = 670 N is exerted on control arm BC, which is securely attached to the solid 21 mm diameter shaft. Dimensions of the assembly are a = 145 mm and b = 100 mm. Determine the absolute maximum shear stress in the shaft at (a) point H and (b) point K. y a B A Answer: (a) (Tabs max) H (b) (Tabs max) K K P₂ i H b C X MPa MPa
