A short rectangular post supports a compressive load of P = 2500 lb as shown. A top view of the post showing the locatio

[answerhappygod]

A Short Rectangular Post Supports A Compressive Load Of P 2500 Lb As Shown A Top View Of The Post Showing The Locatio 1 (128.99 KiB) Viewed 30 times

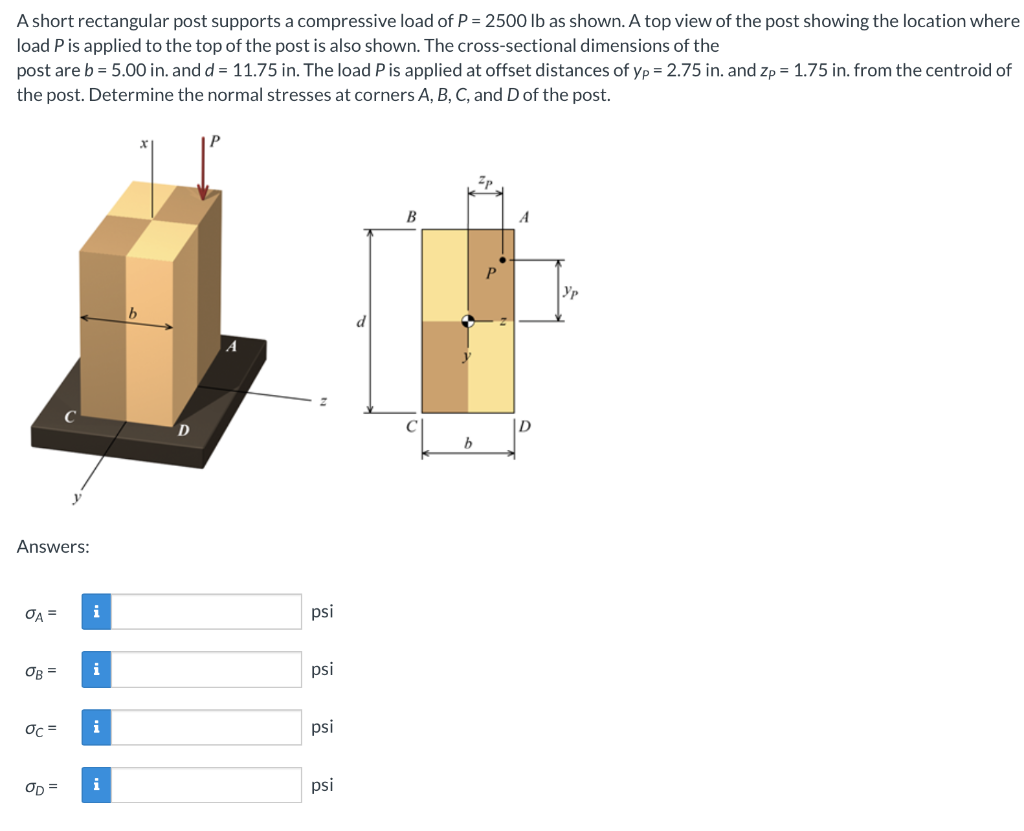

A short rectangular post supports a compressive load of P = 2500 lb as shown. A top view of the post showing the location where load P is applied to the top of the post is also shown. The cross-sectional dimensions of the post are b = 5.00 in. and d = 11.75 in. The load P is applied at offset distances of yp = 2.75 in. and zp = 1.75 in. from the centroid of the post. Determine the normal stresses at corners A, B, and D of the post. B Yp b Answers: JA = OB = Oc= OD= i i i D psi psi psi psi b D
