The cantilever beam consists of a rectangular structural steel tube shape [E = 25000 ksi; I = 567 in.4]. For the loading

Post by answerhappygod »

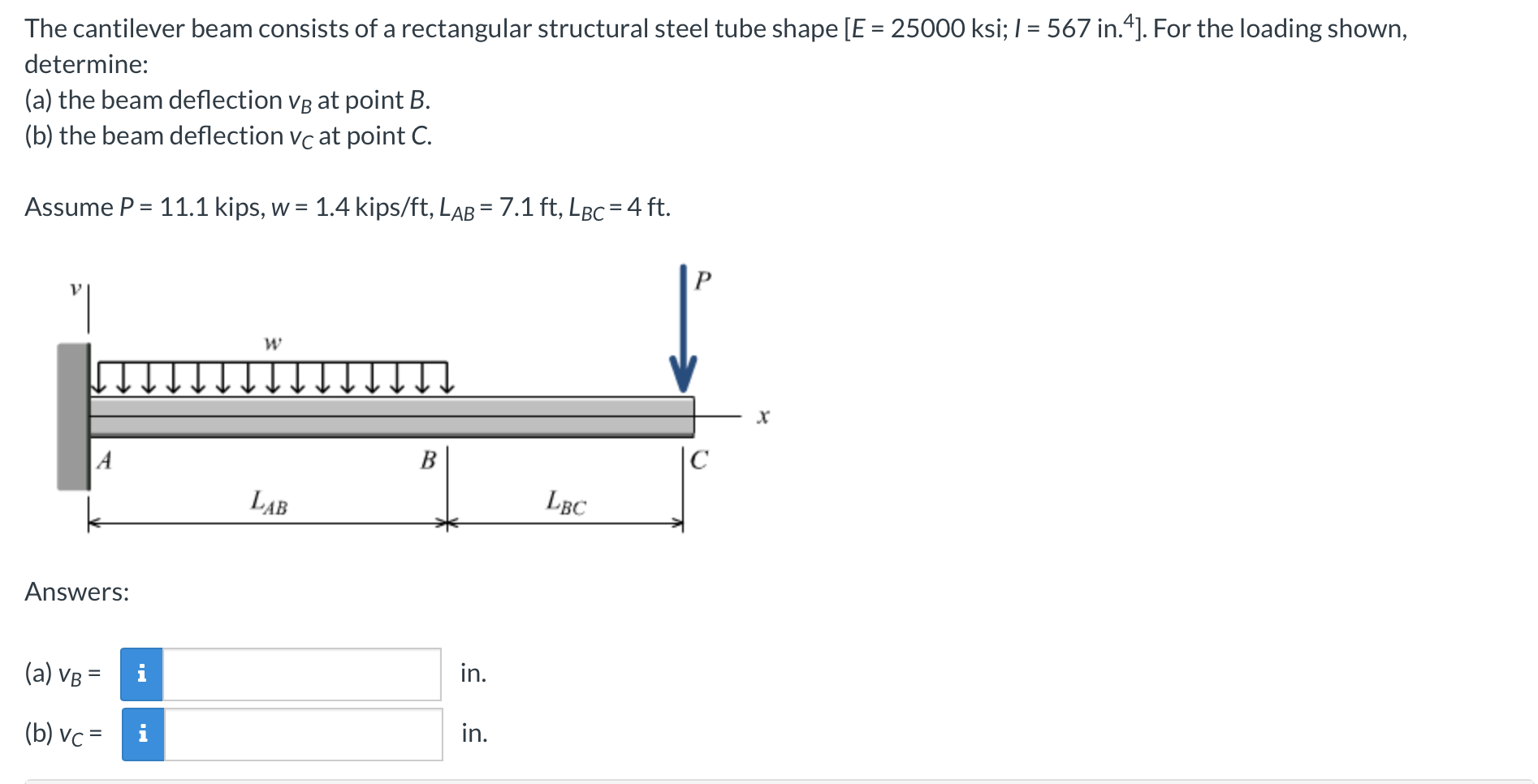

The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 25000 Ksi I 567 In 4 For The Loading 1
The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 25000 Ksi I 567 In 4 For The Loading 1 (80.57 KiB) Viewed 38 times
The cantilever beam consists of a rectangular structural steel tube shape [E = 25000 ksi; I = 567 in.4]. For the loading shown, determine: (a) the beam deflection vg at point B. (b) the beam deflection vc at point C. Assume P = 11.1 kips, w = 1.4 kips/ft, LAB = 7.1 ft, LBC = 4 ft. P "| B LAB LBC Answers: (a) VB = (b) vc= in. in. X
