The solid 20-mm-diameter steel [E = 210 GPa] shaft supports two belt pulleys. Assume that the bearing at A can be ideali

Post by answerhappygod »

The Solid 20 Mm Diameter Steel E 210 Gpa Shaft Supports Two Belt Pulleys Assume That The Bearing At A Can Be Ideali 1
The Solid 20 Mm Diameter Steel E 210 Gpa Shaft Supports Two Belt Pulleys Assume That The Bearing At A Can Be Ideali 1 (136.94 KiB) Viewed 35 times

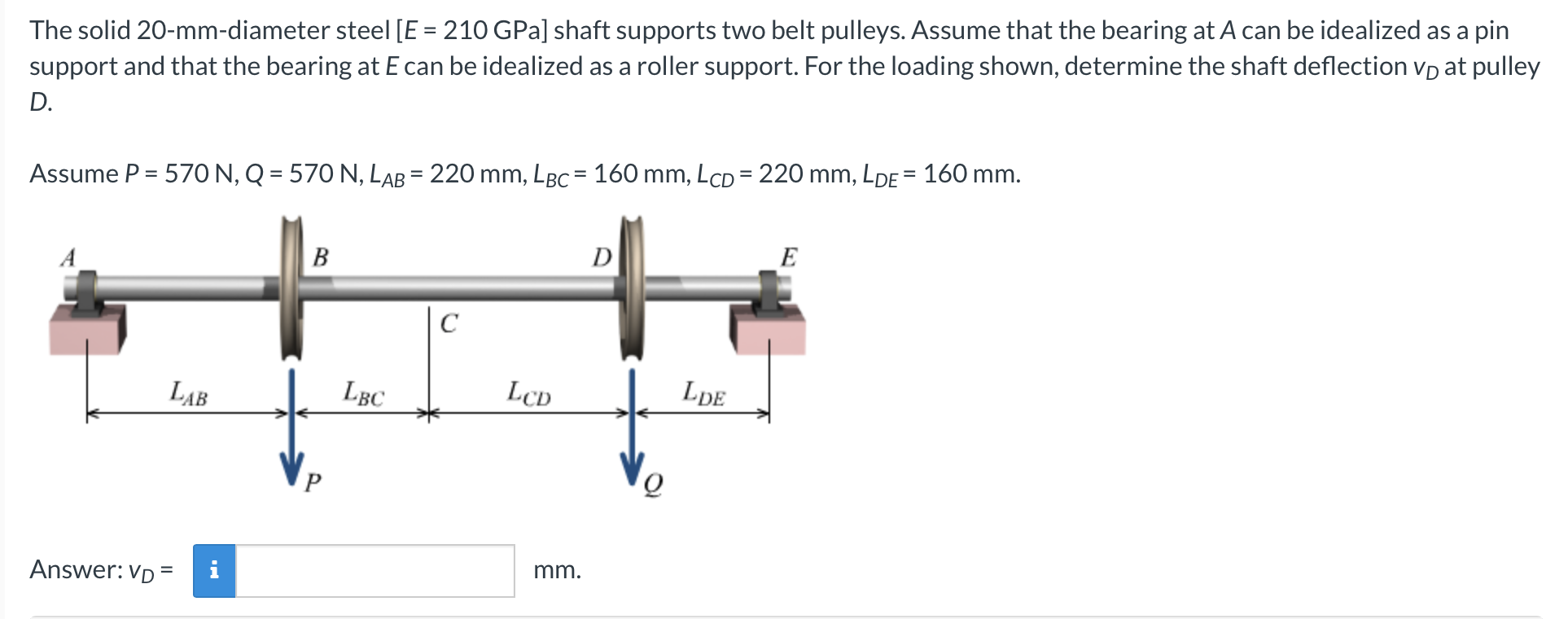

The solid 20-mm-diameter steel [E = 210 GPa] shaft supports two belt pulleys. Assume that the bearing at A can be idealized as a pin support and that the bearing at E can be idealized as a roller support. For the loading shown, determine the shaft deflection vp at pulley D. Assume P = 570 N, Q = 570 N, LAB = 220 mm, LBc = 160 mm, LcD = 220 mm, LDE = 160 mm. B D E C LAB Answer: VD= P LBC LCD mm. LDE
