Problem Set 4: C 134 wo). Fre/(0) 0 wo For a uniform clamped-pinned column determine the equation which has the buckling

[answerhappygod]

Problem Set 4 C 134 Wo Fre 0 0 Wo For A Uniform Clamped Pinned Column Determine The Equation Which Has The Buckling 1 (33.52 KiB) Viewed 43 times

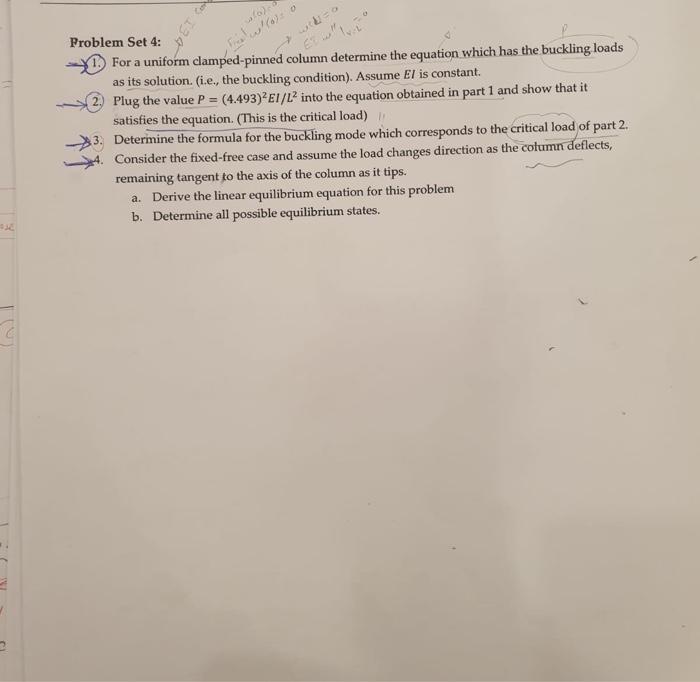

Problem Set 4: C 134 wo). Fre/(0) 0 wo For a uniform clamped-pinned column determine the equation which has the buckling loads as its solution. (i.e., the buckling condition). Assume El is constant. Plug the value P = (4.493)2 E1/L² into the equation obtained in part 1 and show that it satisfies the equation. (This is the critical load) 3. Determine the formula for the buckling mode which corresponds to the critical load of part 2. Consider the fixed-free case and assume the load changes direction as the column deflects, remaining tangent to the axis of the column as it tips. a. Derive the linear equilibrium equation for this problem b. Determine all possible equilibrium states.
