wer Øy Txy Draw the Mohr's circle for the state of plane stress shown below. Then, determine the magnitude of the normal

Post by answerhappygod »

Wer Oy Txy Draw The Mohr S Circle For The State Of Plane Stress Shown Below Then Determine The Magnitude Of The Normal 1
Wer Oy Txy Draw The Mohr S Circle For The State Of Plane Stress Shown Below Then Determine The Magnitude Of The Normal 1 (126.11 KiB) Viewed 42 times

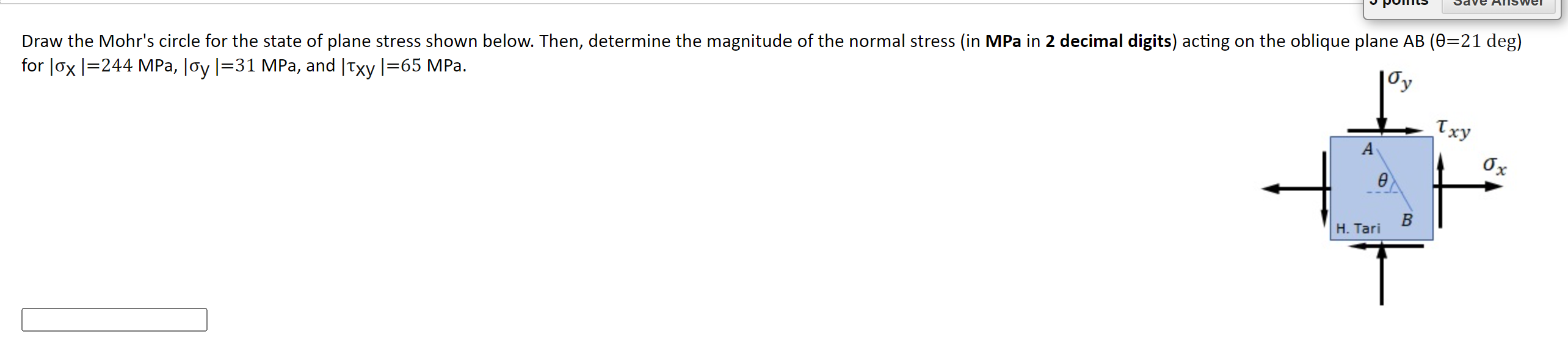

wer Øy Txy Draw the Mohr's circle for the state of plane stress shown below. Then, determine the magnitude of the normal stress (in MPa in 2 decimal digits) acting on the oblique plane AB (0=21 deg) for lox |=244 MPa, |oy |=31 MPa, and |txy |=65 MPa. A 0 H. Tari B 0x
