Q6. Air enters the compressor of an ideal air-standard Brayton cycle at 100 kPa, 300 K, with a volumetric flow rate of 5

Post by answerhappygod »

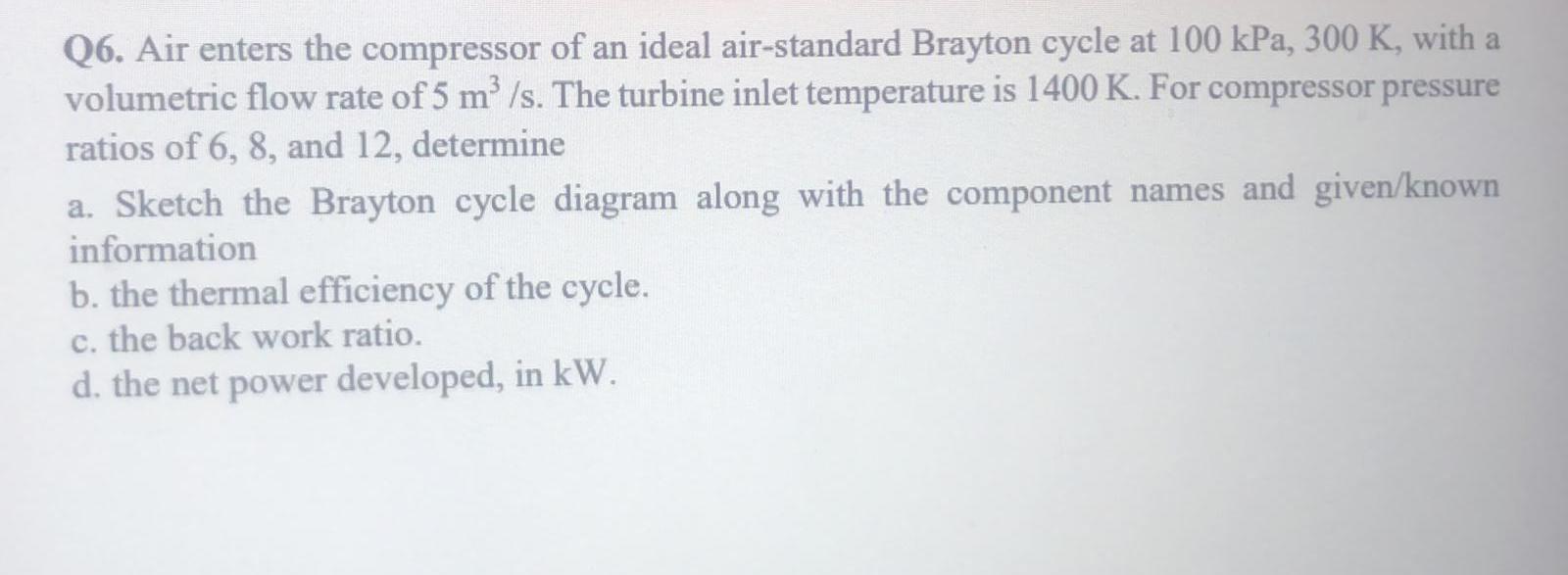

Q6 Air Enters The Compressor Of An Ideal Air Standard Brayton Cycle At 100 Kpa 300 K With A Volumetric Flow Rate Of 5 1
Q6 Air Enters The Compressor Of An Ideal Air Standard Brayton Cycle At 100 Kpa 300 K With A Volumetric Flow Rate Of 5 1 (64.74 KiB) Viewed 37 times
Q6. Air enters the compressor of an ideal air-standard Brayton cycle at 100 kPa, 300 K, with a volumetric flow rate of 5 m³/s. The turbine inlet temperature is 1400 K. For compressor pressure ratios of 6, 8, and 12, determine a. Sketch the Brayton cycle diagram along with the component names and given/known information b. the thermal efficiency of the cycle. c. the back work ratio. d. the net power developed, in kW.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
