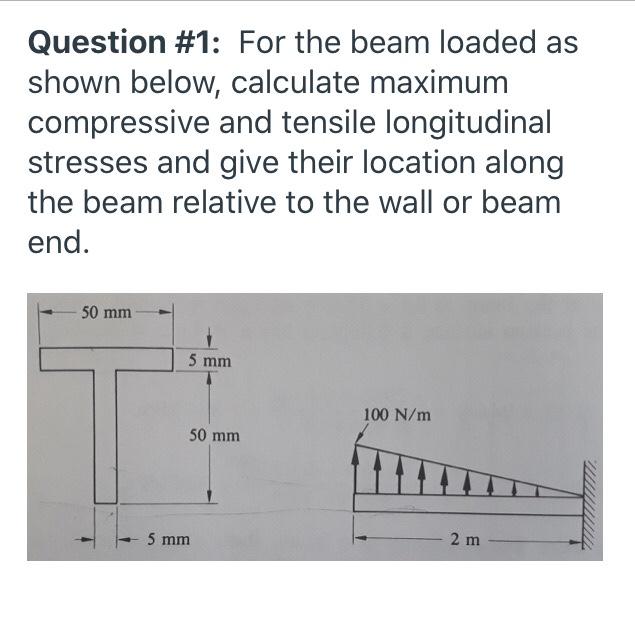

Question #1: For the beam loaded as shown below, calculate maximum compressive and tensile longitudinal stresses and give their location along the beam relative to the wall or beam end. 50 mm 5 mm 100 N/m 50 mm 5 mm 2 m
Question #1: For the beam loaded as shown below, calculate maximum compressive and tensile longitudinal stresses and give their location along the beam relative to the wall or beam end. 50 mm 5 mm 100 N/m 50 mm 5 mm 2 m
