- The Weldment Shown In The Figure Is Subjected To An Alternating Force F The Hot Rolled Steel Bar Has A Thickness H An 1 (120.54 KiB) Viewed 40 times
The weldment shown in the figure is subjected to an alternating force F. The hot - rolled steel bar has a thickness h an
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The weldment shown in the figure is subjected to an alternating force F. The hot - rolled steel bar has a thickness h an
The weldment shown in the figure is subjected to an alternating force F. The hot - rolled steel bar has a thickness h and is of AISI 1010 steel . The vertical support is likewise AISI 1010 HR steel . The electrode is given in the table below . Estimate the static load F the bar will carry if three fillet welds are used .

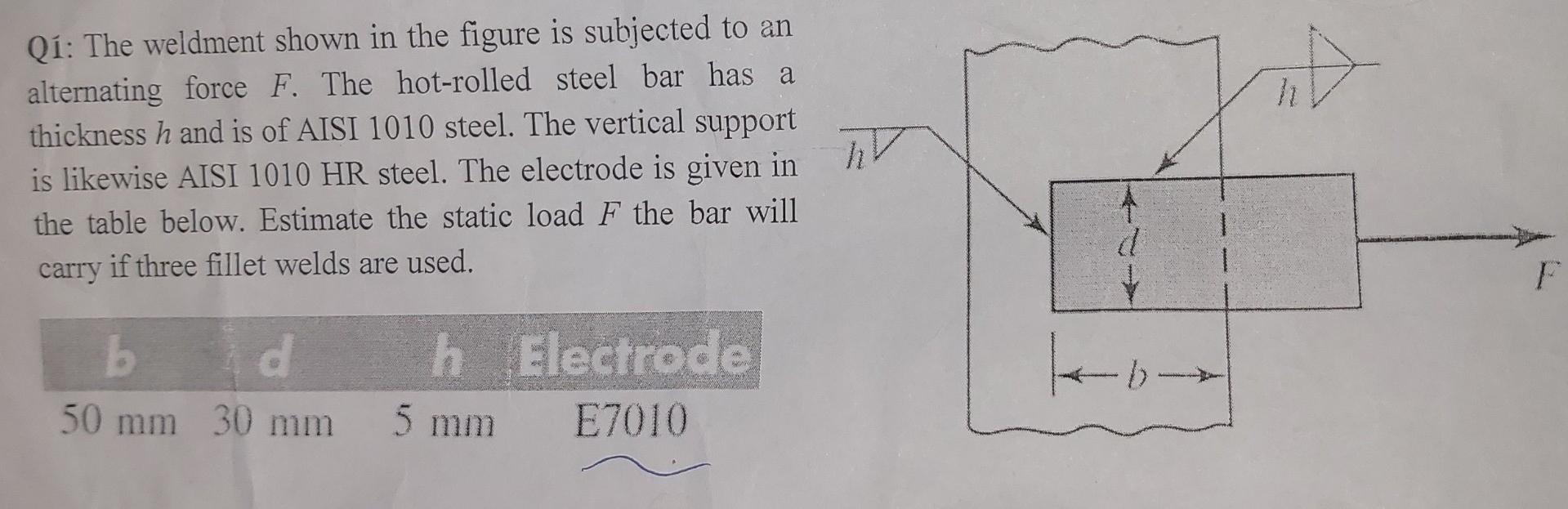

Q1: The weldment shown in the figure is subjected to an alternating force F. The hot-rolled steel bar has a thickness h and is of AISI 1010 steel. The vertical support is likewise AISI 1010 HR steel. The electrode is given in the table below. Estimate the static load F the bar will carry if three fillet welds are used. d h Electrode 50 mm 30 mm E7010 5 mm hv kb F
Q1: The weldment shown in the figure is subjected to an alternating force F. The hot-rolled steel bar has a thickness h and is of AISI 1010 steel. The vertical support is likewise AISI 1010 HR steel. The electrode is given in the table below. Estimate the static load F the bar will carry if three fillet welds are used. d h Electrode 50 mm 30 mm E7010 5 mm hv kb F
