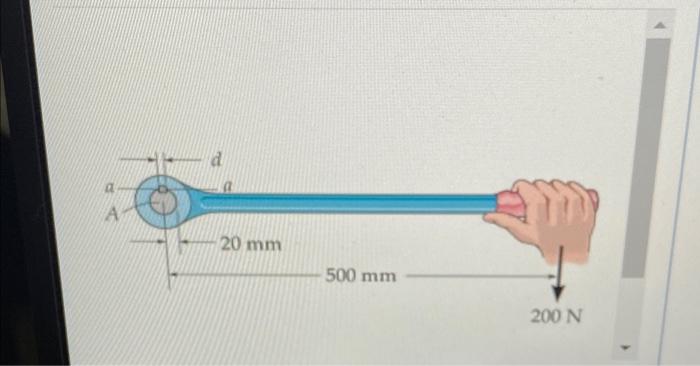

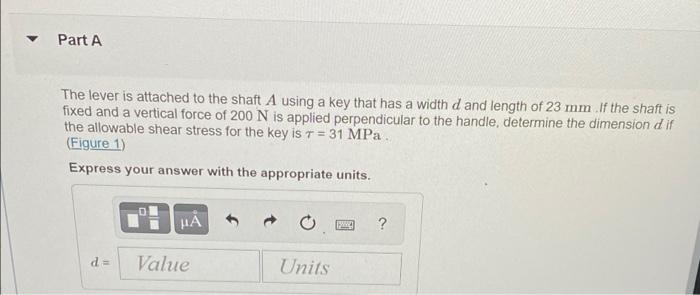

Y Part A The lever is attached to the shaft A using a key that has a width d and length of 23 mm .If the shaft is fixed and a vertical force of 200 N is applied perpendicular to the handle, determine the dimension dif the allowable shear stress for the key is T = 31 MPa. (Figure 1) Express your answer with the appropriate units. μÀ PANC ? d= Value Units
