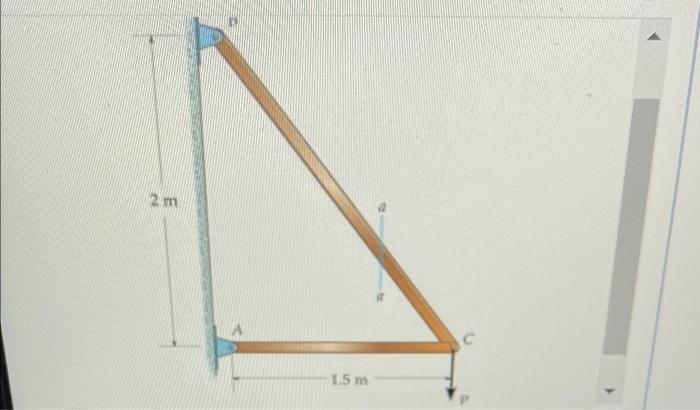

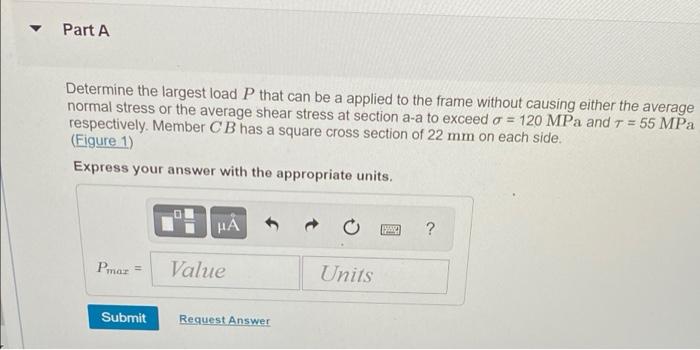

▼ Part A Determine the largest load P that can be a applied to the frame without causing either the average normal stress or the average shear stress at section a-a to exceed a = 120 MPa and T = 55 MPa respectively. Member CB has a square cross section of 22 mm on each side. (Figure 1) Express your answer with the appropriate units. HA ? Pmar = Value Units Submit Request Answer
