The two steel members are joined together using a 30° scarf weld. Forces of F = 12.5 kN are applied at each end, as show

[answerhappygod]

The Two Steel Members Are Joined Together Using A 30 Scarf Weld Forces Of F 12 5 Kn Are Applied At Each End As Show 1 (64.61 KiB) Viewed 45 times

The Two Steel Members Are Joined Together Using A 30 Scarf Weld Forces Of F 12 5 Kn Are Applied At Each End As Show 2 (47.05 KiB) Viewed 45 times

The Two Steel Members Are Joined Together Using A 30 Scarf Weld Forces Of F 12 5 Kn Are Applied At Each End As Show 3 (28.75 KiB) Viewed 45 times

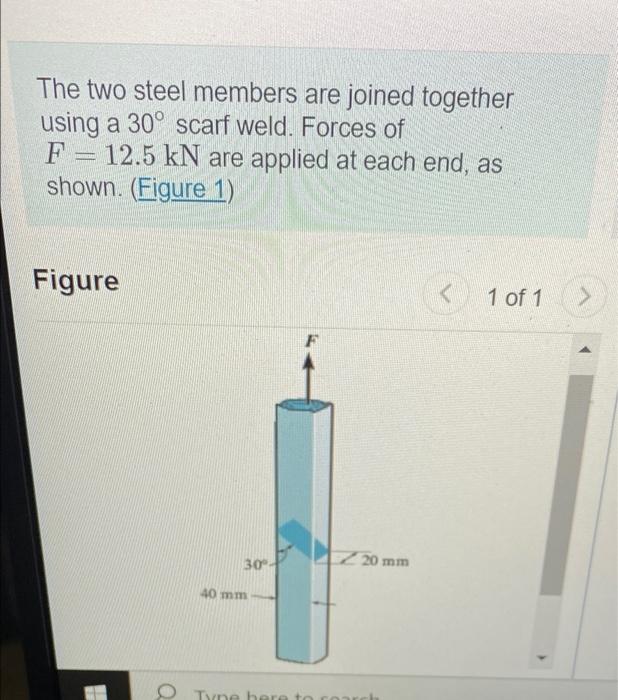

The two steel members are joined together using a 30° scarf weld. Forces of F = 12.5 kN are applied at each end, as shown. (Figure 1) Figure 30%- 40 mm Tyne Z20 mm < 1 of 1 >

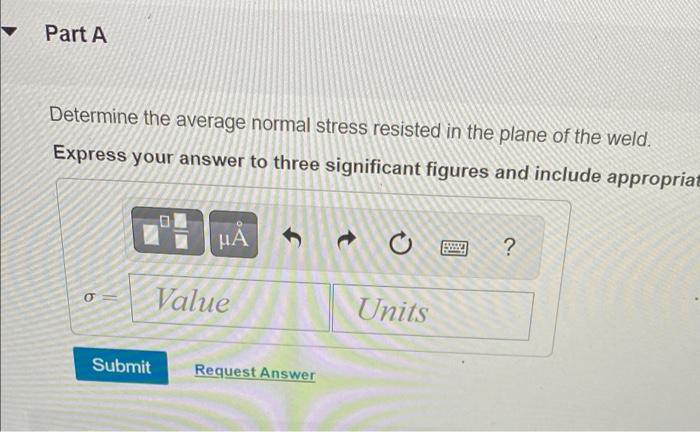

Part A Determine the average normal stress resisted in the plane of the weld. Express your answer to three significant figures and include appropriat μA 52997 ? O Value Units Submit Request Answer

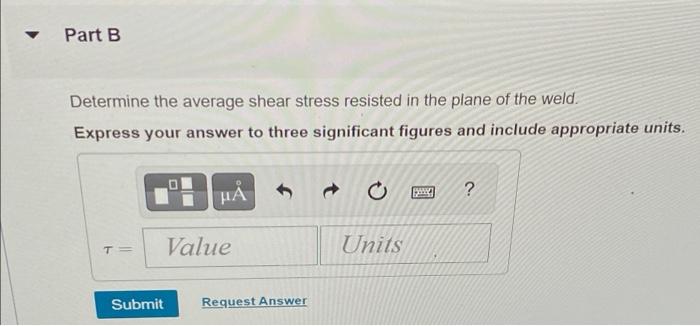

▼ Part B Determine the average shear stress resisted in the plane of the weld. Express your answer to three significant figures and include appropriate units. μÅ PAR ? T= Value Units Submit Request Answer
