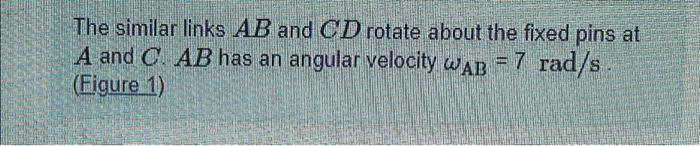

- The Similar Links Ab And Cd Rotate About The Fixed Pins At A And C Ab Has An Angular Velocity Wab 7 Rad S Figure 1 1 (30.29 KiB) Viewed 53 times
- The Similar Links Ab And Cd Rotate About The Fixed Pins At A And C Ab Has An Angular Velocity Wab 7 Rad S Figure 1 2 (78.59 KiB) Viewed 53 times
- The Similar Links Ab And Cd Rotate About The Fixed Pins At A And C Ab Has An Angular Velocity Wab 7 Rad S Figure 1 3 (18.95 KiB) Viewed 53 times
- The Similar Links Ab And Cd Rotate About The Fixed Pins At A And C Ab Has An Angular Velocity Wab 7 Rad S Figure 1 4 (49.05 KiB) Viewed 53 times

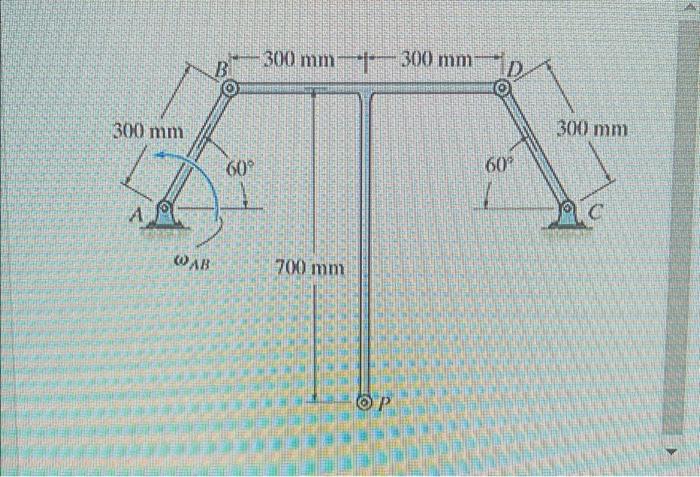

300 mm A BEATS. @AB B 60° 300 mm 300 mm 700 mm OP D 60° 300 mm

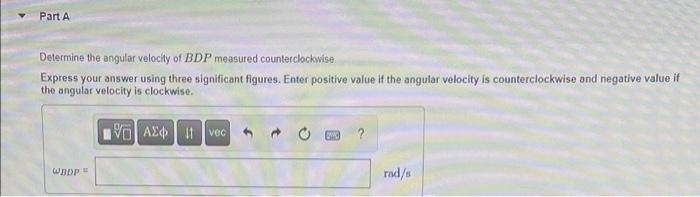

Part A Determine the angular velocity of BDP measured counterclockwise Express your answer using three significant figures. Enter positive value if the angular velocity is counterclockwise and negative value if the angular velocity is clockwise. G| ΑΣΦ11 Ivec WBDP = rad/s

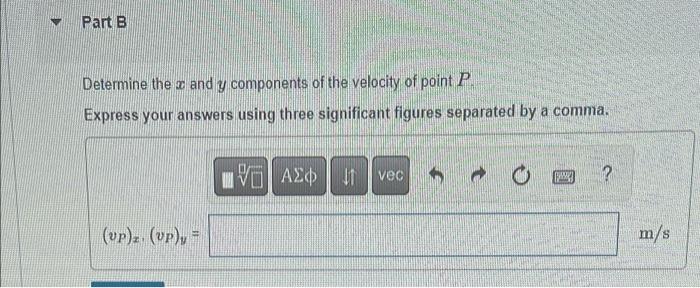

▼ Part B Determine the and y components of the velocity of point P Express your answers using three significant figures separated by a comma. ΓΧΕΙ ΑΣΦ AΣ 1 vec F ? (vp)z. (UP), = m/s
