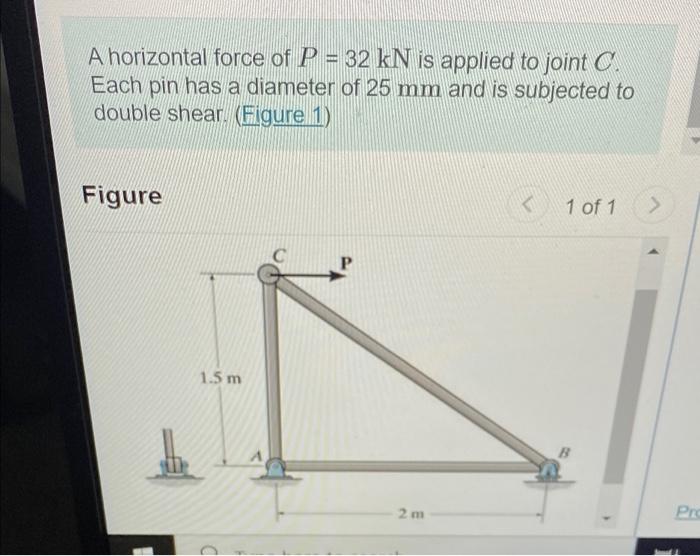

A horizontal force of P = 32 kN is applied to joint C Each pin has a diameter of 25 mm and is subjected to double shear. (Figure 1) Figure 1 of 1 1.5 m 2m Pro

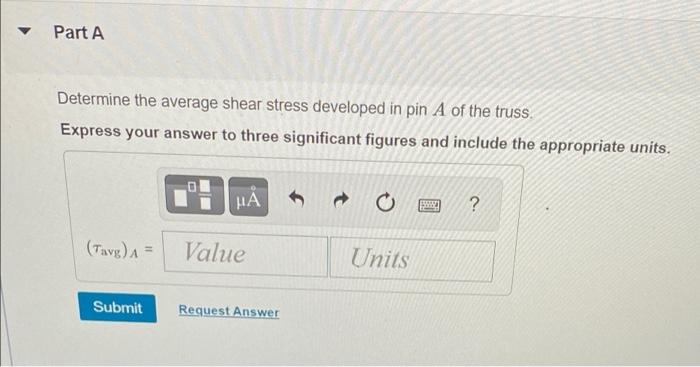

▼ Part A Determine the average shear stress developed in pin A of the truss. Express your answer to three significant figures and include the appropriate units. μA C www. ? (Tavg) A = Value Units Submit Request Answer
