This is a question from Mechanisms class.
Because of heavy loading the distance of the two base circle
(gear and pinion) seperate a little bit, the teeth of gear and
pinion are still meshing, why it is fulfill "The fundamental law
of gearing" as before?

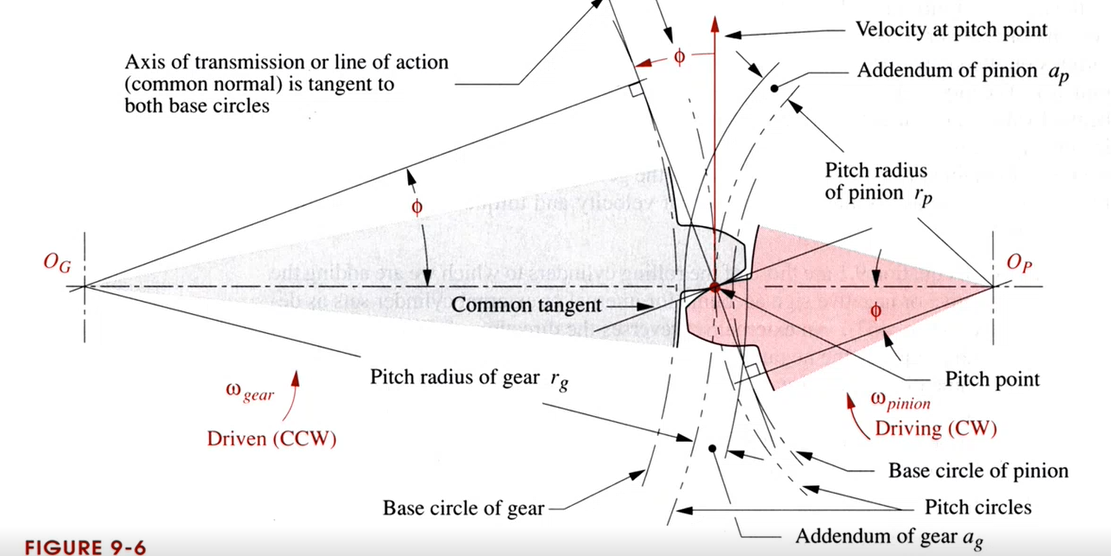

This Is A Question From Mechanisms Class Because Of Heavy Loading The Distance Of The Two Base Circle Gear And Pinion 1 (346.77 KiB) Viewed 60 times
Axis of transmission or line of action (common normal) is tangent to both base circles OG FIGURE 9-6 is anibis su laid Revabulyo Ich a dobroly Common tangent - Pitch radius of gear rg gear Driven (CCW) Base circle of gear- Velocity at pitch point Addendum of pinion ap Pitch radius of pinion p Pitch point @pinion Driving (CW) Base circle of pinion Pitch circles Addendum of gear ag
