9. Two cables AB and AC support the flag pole, OA from the end of the pole to the wall as shown in the figure. a) Calcul

Post by answerhappygod »

9 Two Cables Ab And Ac Support The Flag Pole Oa From The End Of The Pole To The Wall As Shown In The Figure A Calcul 1
9 Two Cables Ab And Ac Support The Flag Pole Oa From The End Of The Pole To The Wall As Shown In The Figure A Calcul 1 (120.09 KiB) Viewed 63 times

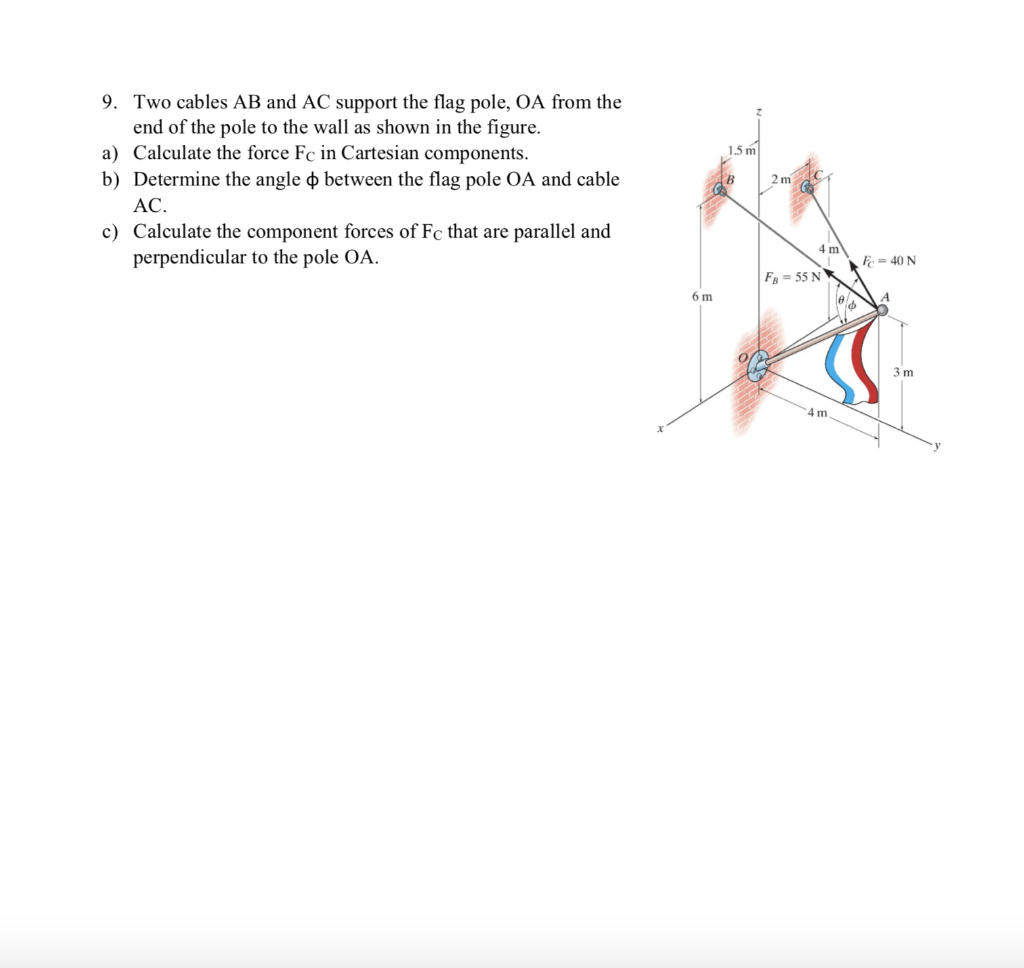

9. Two cables AB and AC support the flag pole, OA from the end of the pole to the wall as shown in the figure. a) Calculate the force Fc in Cartesian components. b) Determine the angle between the flag pole OA and cable AC. c) Calculate the component forces of Fc that are parallel and perpendicular to the pole OA. 6 m 1.5 m B 2 m F=55 N 4 m 4m. F = 40 N 3m
