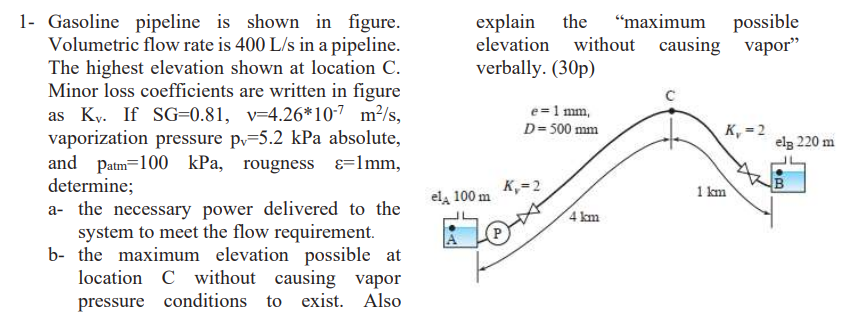

1- Gasoline pipeline is shown in figure. Volumetric flow rate is 400 L/s in a pipeline. The highest elevation shown at location C. Minor loss coefficients are written in figure as Ky. If SG=0.81, v=4.26*10-7 m²/s, vaporization pressure p=5.2 kPa absolute, and patm=100 kPa, rougness &=1mm, determine; a- the necessary power delivered to the system to meet the flow requirement. b- the maximum elevation possible at location C without causing vapor pressure conditions to exist. Also explain the "maximum possible elevation without causing vapor" verbally. (30p) e = 1 mm, D=500 mm K₁ = 2 4 km el 100 m K₁=2 1 km ela 220 m Bo
