*9-4. The state of stress at a point in a member is shown on the element. Determine the stress components acting on the

[answerhappygod]

9 4 The State Of Stress At A Point In A Member Is Shown On The Element Determine The Stress Components Acting On The 1 (47.3 KiB) Viewed 66 times

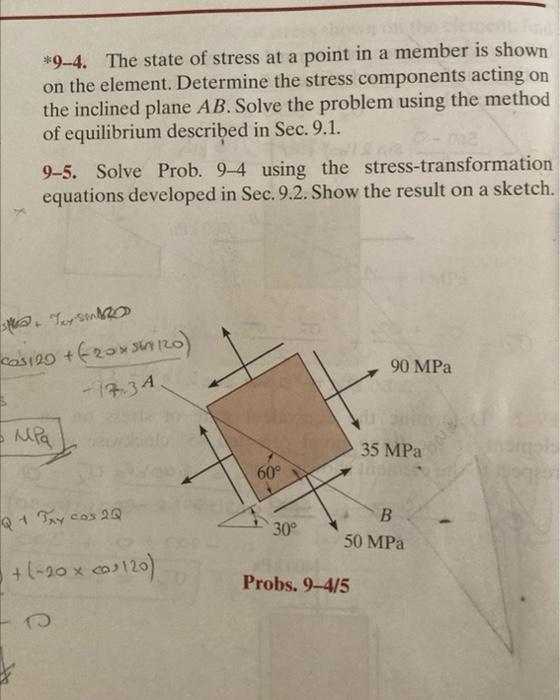

*9-4. The state of stress at a point in a member is shown on the element. Determine the stress components acting on the inclined plane AB. Solve the problem using the method of equilibrium described in Sec. 9.1. 9-5. Solve Prob. 9-4 using the stress-transformation equations developed in Sec. 9.2. Show the result on a sketch. + Yey Sin Cas129 + (20 x 3120) -17.34. 90 MPa - мра Q1 Tay cos 2Q +(-20×120) 60° drispim 35 MPa B 50 MPa 30° Probs. 9-4/5 Regler
