Pls explain with working, I don't understand the format that was given to me.... This was the one that was sent to me Vi

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Pls explain with working, I don't understand the format that was given to me.... This was the one that was sent to me Vi

Post by answerhappygod »

Pls explain with working, I don't understand the format that was
given to me....
Pls Explain With Working I Don T Understand The Format That Was Given To Me This Was The One That Was Sent To Me Vi 1
Pls Explain With Working I Don T Understand The Format That Was Given To Me This Was The One That Was Sent To Me Vi 1 (53.15 KiB) Viewed 41 times
This was the one that was sent to me Via answers a few times when
i send the question. But i don't understand pls explain with
working.
Pls Explain With Working I Don T Understand The Format That Was Given To Me This Was The One That Was Sent To Me Vi 2
Pls Explain With Working I Don T Understand The Format That Was Given To Me This Was The One That Was Sent To Me Vi 2 (85.2 KiB) Viewed 41 times

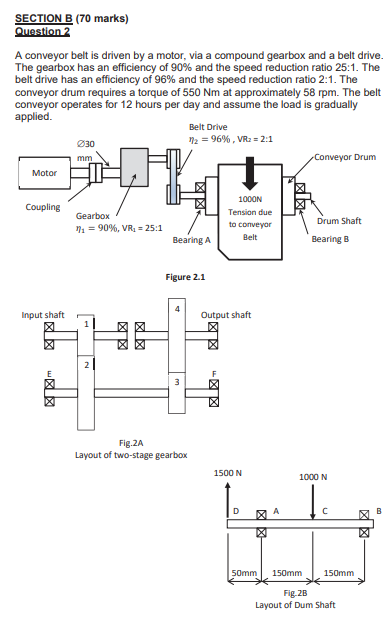

SECTION B (70 marks) Question 2 A conveyor belt is driven by a motor, via a compound gearbox and a belt drive. The gearbox has an efficiency of 90% and the speed reduction ratio 25:1. The belt drive has an efficiency of 96% and the speed reduction ratio 2:1. The conveyor drum requires a torque of 550 Nm at approximately 58 rpm. The belt conveyor operates for 12 hours per day and assume the load is gradually applied. Belt Drive 12 = 96%, VR2 = 2:1 Ø30 mm Conveyor Drum Motor 1 1000N Coupling Gearbox 1₁ = 90%, VR₁ = 25:1 Tension due to conveyor Drum Shaft Bearing A Belt Input shaft Figure 2.1 4 1 2 3 Fig.2A Layout of two-stage gearbox × Output shaft - D Bearing B 1500 N 1000 N IT p D B 50mm 150mm 150mm Fig.28 Layout of Dum Shaft

2.1 Motor (i) Calculate the rotational speed required by the motor. (ii) Calculate the power required by the motor. Select a suitable 3-phase Brook Crompton motor for the system stating the following: • Motor frame size: Motor power: Motor speed: Motor shaft diameter:

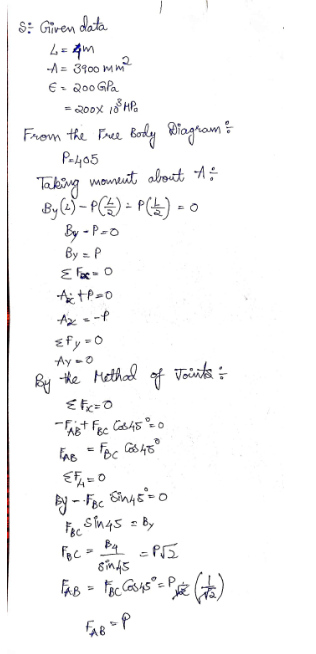

S: Given data 4 = 4m -A= 3900 mm" imm² € = 200 GPa - 200x 10³ HP From the Free Body Diagram & P-405 Taking moment about 1 ÷ By (2) - P(1) - P(1/2) = 0 By - P=0 By = P EFx-O -A+P=0 A₂ = -P Toints= {fy=0 Ay=0 By the Method off {Fx=0 -FAB+ FBC Cos45° = 0 FAB = FBC Co 45° €FA=0 By - FBC 8²1 45²=0 FBc Sin45 = By FBc = P4 = P√5 8in 45 FAB = FBC C0045° = P² (1₂) FAB = P
