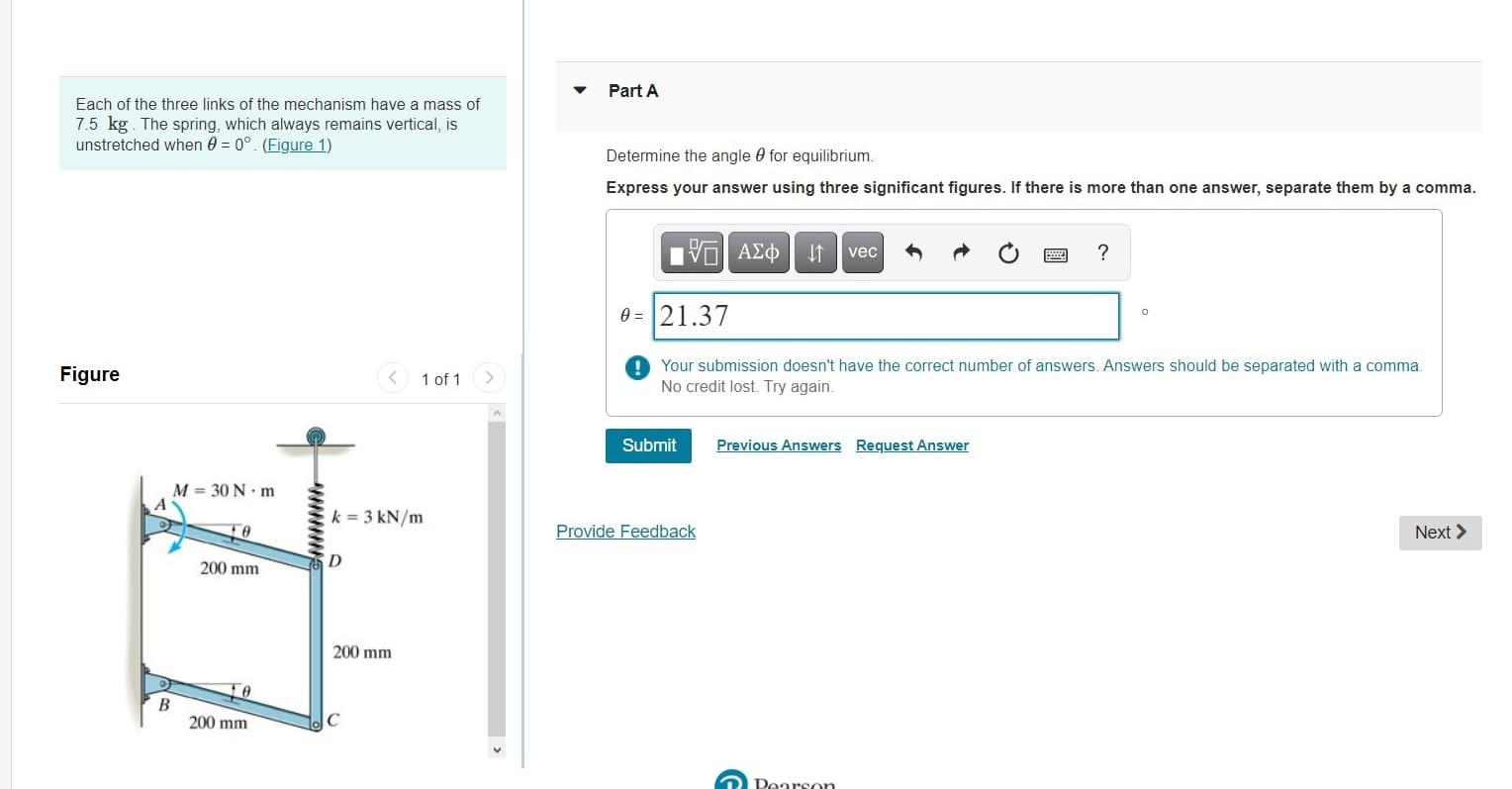

Each of the three links of the mechanism have a mass of 7.5 kg. The spring, which always remains vertical, is unstretched when 0 = 0°. (Figure 1) Figure 1 of 1 M= 30 Nm 0 200 mm 200 mm B k = 3 kN/m D 200 mm C Part A Determine the angle for equilibrium. Express your answer using three significant figures. If there is more than one answer, separate them by a comma. IVE ΑΣΦ ↓↑ vec ? 0= 21.37 Your submission doesn't have the correct number of answers. Answers should be separated with a comma. No credit lost. Try again. Submit Previous Answers Request Answer Next > Provide Feedback Pearson
