A Cantilever beam ABC is loaded as shown in Figure Q1. i. Determine the shear force (V) and bending moment (M) as functi

[answerhappygod]

A Cantilever Beam Abc Is Loaded As Shown In Figure Q1 I Determine The Shear Force V And Bending Moment M As Functi 1 (45.59 KiB) Viewed 42 times

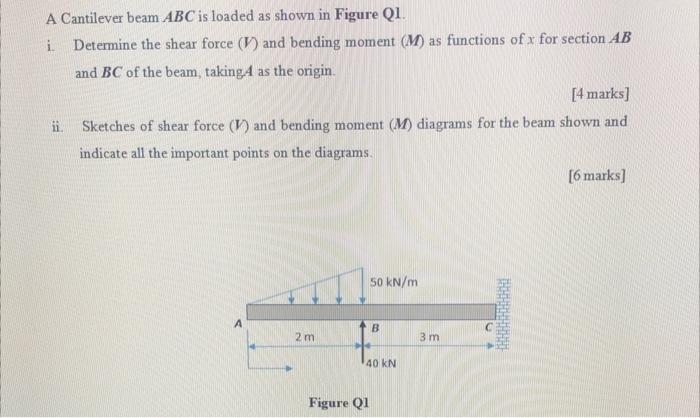

A Cantilever beam ABC is loaded as shown in Figure Q1. i. Determine the shear force (V) and bending moment (M) as functions of x for section AB and BC of the beam, taking4 as the origin. [4 marks] ii. Sketches of shear force () and bending moment (M) diagrams for the beam shown and indicate all the important points on the diagrams. [6 marks] 50 kN/m B 40 kN 2m Figure Q1 3 m C
